ZYC, SIMPO, 5000i 30.72 kWh Battery Pack with cabinet

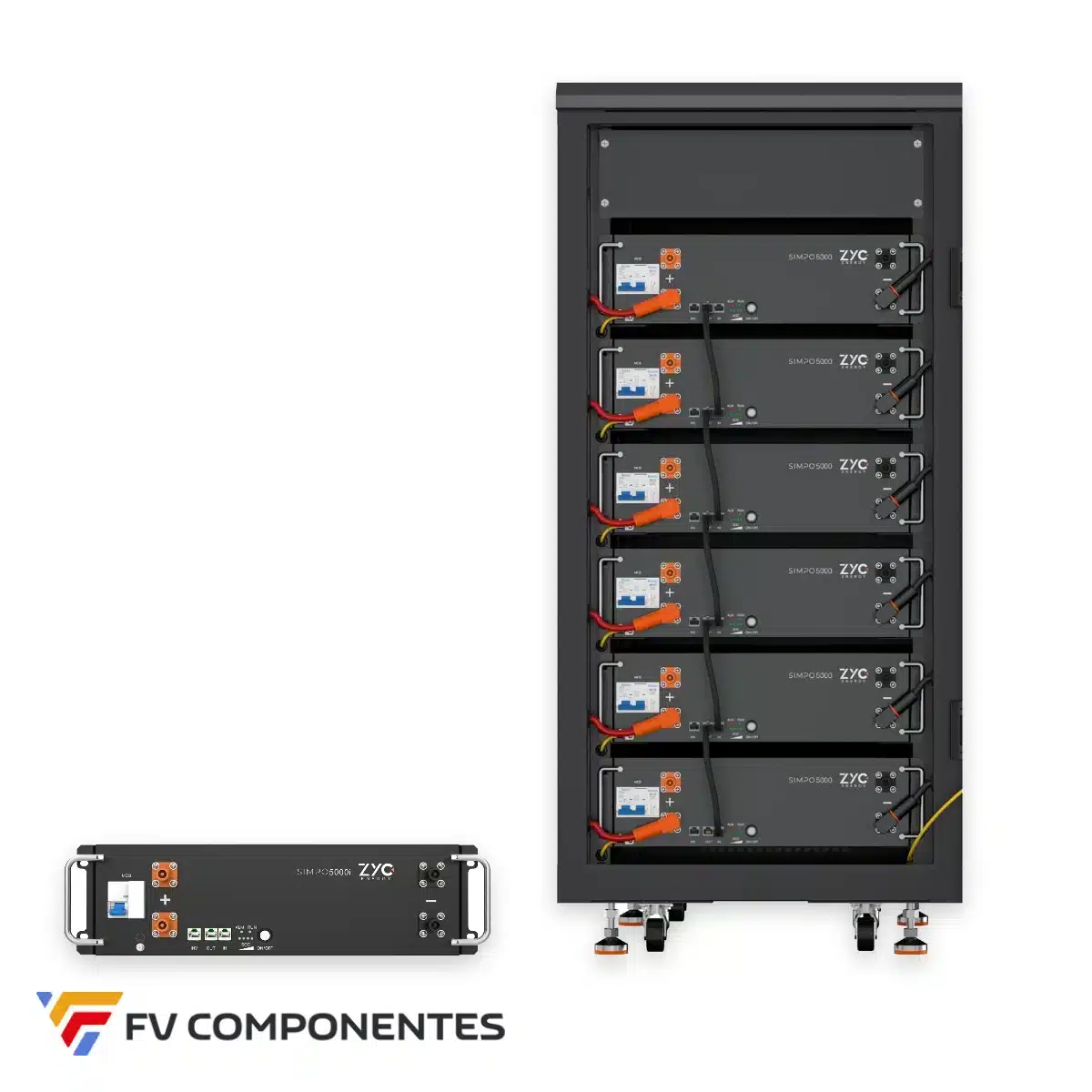

Storage pack ZYC SIMPO 5000i from 30.72 kWh at 51.2 V, comprising 6 SIMPO 5000i batteries mounted in the ZYC pre-wired cabinet, which can accommodate up to 6 modules.

Each module incorporates its own circuit breaker and BMS, so the system can be installed without the need for an additional distribution board between the batteries. The SIMPO 5000i delivers a continuous current of 70 A and charges from 0 °C. Six modules are required to complete the cabinet; if you need more capacity, a second cabinet can be added in parallel (up to 80 batteries).

What is included

• 6 × ZYC SIMPO 5000i battery · 5.12 kWh · 51.2 V LiFePO4
• 1 × ZYC SIMPO pre-wired cabinet for 6 batteries

Key figures

• Total capacity: 30.72 kWh
• Voltage: 51.2 V
• Chemical composition: LiFePO₄
• Communication: CAN and RS485, compatible with Victron, SMA Sunny Island, Studer, Deye, Goodwe and others
• Warranty: 10 years

Consultation How many batteries do you need, depending on your inverter? or view all the batteries in the ZYC Energy page.
