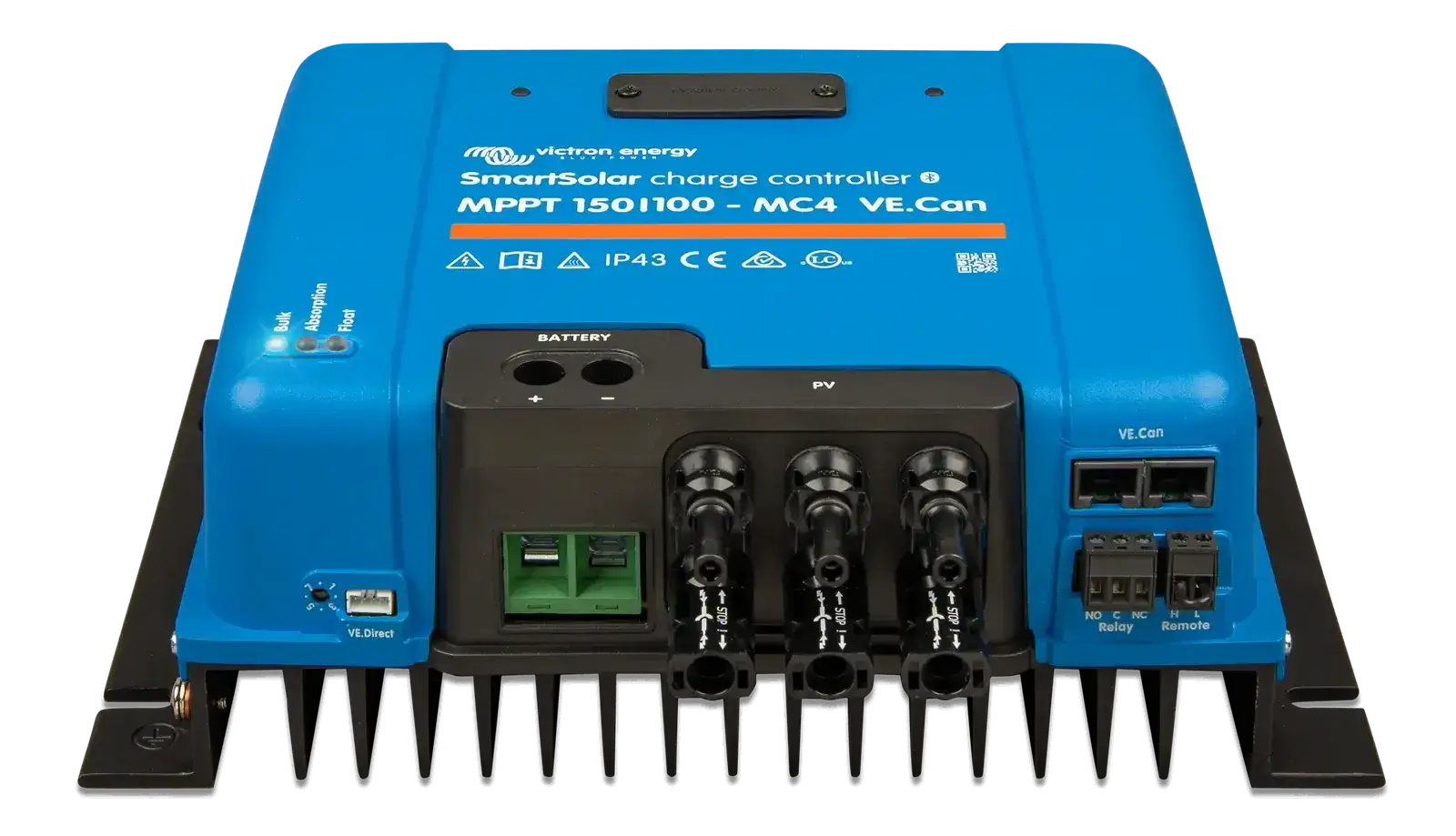

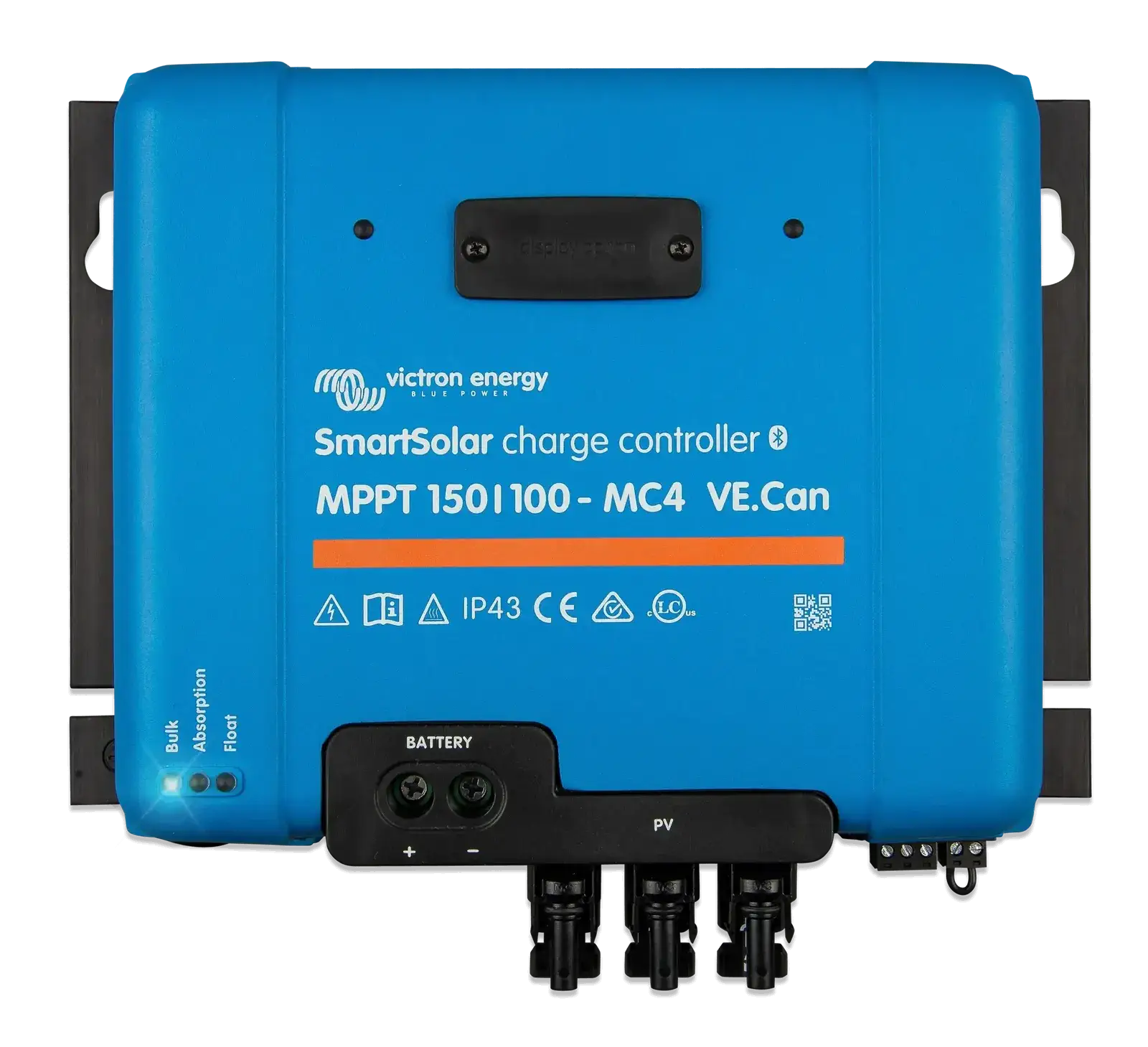

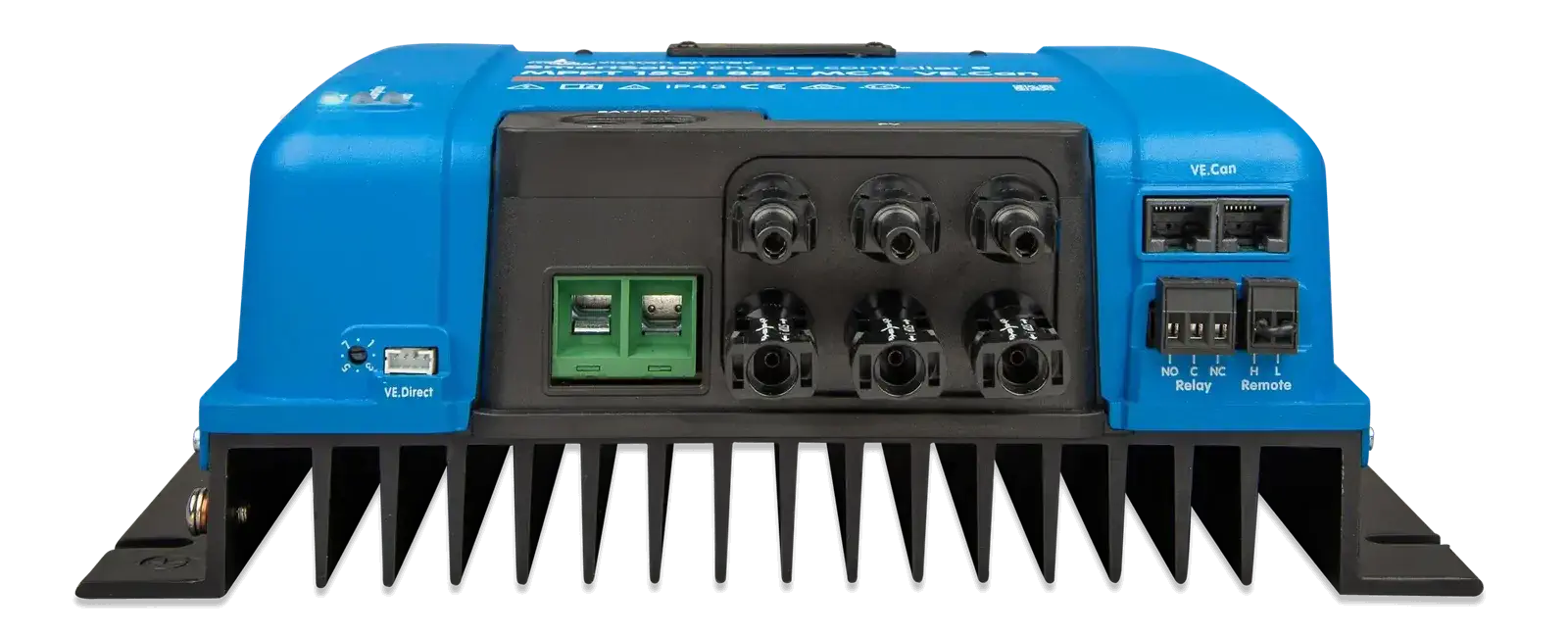

Controller Victron SmartSolar MPPT 150/100-MC4 VE.can

Controller Victron SmartSolar MPPT 150/100-MC4 VE.can

In changing light conditions, the Victron SmartSolar MPPT 150/100-MC4 VE.can controller achieves 30 % more energy than PWM and 10 % more than traditional MPPT. Thanks to its SmartSolar algorithm, it selects the optimum MPP in cloudy conditions, achieving an efficiency higher than 98 % without a fan. In addition, achieving full protection and customisable charging.

Finally, its Bluetooth connectivity allows for precise monitoring and intelligent recovery. All this thanks to its simplified multi-control, versatile connections on an optional display.

Features of the Victron SmartSolar MPPT 150/100-MC4 VE.can Controller

• Overcome Solar Challenges with Ultra Fast MPPT Tracking

In changing conditions the , get up to 30 % more power than PWM controllers and 10 % more than traditional MPPT.

• Smart Optimisation with MPPT in Cloudy Conditions

Our SmartSolar algorithm always selects the optimal Maximum Power Point (MPP), even in partial cloud cover, ensuring maximum energy harvesting.

• Efficiency Without Compromise

Exceeds 98 % fanless conversion efficiency, maximising performance.

• Customised Control and Complete Protection
  • Program your charging algorithm from eight options, backed by protection against extreme temperatures, short circuits and more.
  • Over-temperature protection and power reduction in case of high temperature.
  • Short-circuit and reverse polarity protection in PV panels. PV reverse current protection.

• Simplified Bluetooth connectivity

Master your SmartSolar controllers with Bluetooth Smart wireless connectivity, from configuration to monitoring.

• Accurate Monitoring via Bluetooth

It uses sensors to communicate battery voltage, temperature and current, optimising performance.

A Smart Battery Sense sensor, BMV-712 Smart battery monitor or SmartShunt can be used to communicate battery voltage and temperature (and current, in the case of a BMV-712 or SmartShunt) to one or more SmartSolar charge controllers.

• Intelligent Battery Recovery

Even on full discharge, our system restarts charging, making it ideal for lithium-ion batteries.

• Simplified Multiple Control

Synchronise up to 25 units with VE.Can and up to 10 units with Bluetooth for integrated control.

• Versatile Connections

Choose between VE.Direct or VE.Can to connect to various devices and systems.

• Remote Control for Flexibility

Turn on and off remotely for greater control, connecting to VE.BUS BMS and more.

• Customise with Optional Display

Enhance your system with the optional SmartSolar LCD Display, simplifying viewing and control.

Datasheet Victron SmartSolar MPPT 150/100-MC4 VE.can Controller - SCC115110511

Datasheet Victron SmartSolar MPPT 150/100-MC4 VE.can Controller - SCC115110511

Manual Victron SmartSolar MPPT 150/100-MC4 VE.can Controller - SCC115110511

Victron SmartSolar MPPT 150/100-MC4 VE.can Controller Manual - SCC115110511
