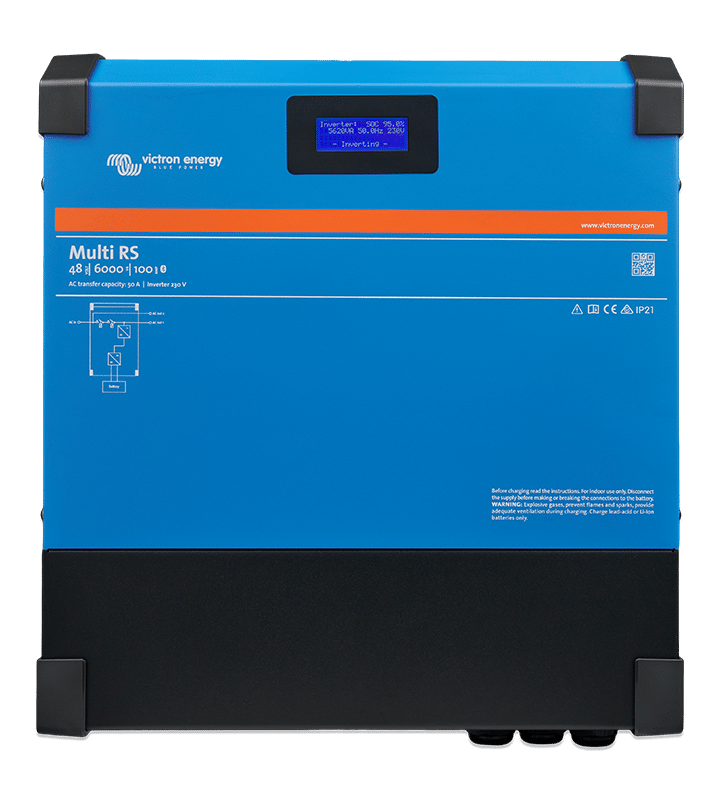

Details of the Multi RS 48/6000/100-50 230V
The Multi RS 48/6000 is a lightweight, high-frequency 48V/6kVA inverter/charger suitable for both stationary and mobile applications. It is the non-solar version of our Multi RS Solar and does not include built-in solar charge controllers.
For stationary applications, it supports Dynamic ESS functionality whilst offering you the flexibility to pair it with a different type or size of solar inverter. It can also be used as a direct grid connection without batteries, making it easy to start small and add storage later.
For mobile applications, the Multi RS offers a lightweight solution that keeps the batteries fully charged, and when there is surplus energy, it can feed that energy back into the grid.
Monitor all parameters via the integrated display or the VictronConnect app, which also provides historical trend data, quick firmware updates and easy-to-use configuration tools. Connect to a Cerbo GX for advanced ESS functions, including zero-export to prevent power being fed into the grid and backup mode to power critical loads during power cuts.
Technical specifications
| A C Input Frequency Range | [45, 65] Hz |
|---|---|
| A C Input Voltage Range | [187, 265] VAC |
| A C Output Voltage | 230 V |
| Auxiliary Output | True |
| Battery Connection | M8 bolts |
| Battery Temperature Sensor | Included |
| Nominal Battery Voltage | 48 V |
| Battery Voltage Sense | True |
| Charge Voltage Absorption | 57.6 V |
| Charging Voltage Float | 55.2 V |
| Charging Voltage Range | [36, 60] V |
| Colour | Blue (RAL 5012) and Black (RAL 9017) |
| Communication Port | VE.Direct, VE.Can, Bluetooth |
| General Communication Port | Yes, 2x |
| Cont Power VA25 | 6,000 VA |
| Cont Power W25a | 4,600 W |
| Cont Power W25b | 5,200 W |
| Cont Power W40 | 4,500 W |
| Cont Power W65 | 3,000 W |
| DC Input Voltage Range | [38, 62] V |
| Depth | 127 mm |
| Emission Immunity | EN 55014-1, EN 55014-2,EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
| Fan-Assisted Cooling | True |
| Frequency | 50 |
| Fully Programmable Ports | True |
| Height | 462 mm |
| Low Battery Restart | 43.6 V |
| Low Battery Shutdown | 37.2 V |
| Material | Steel |
| Maximum AC Input Current | 50 A |
| Maximum Altitude | 2,000 m |
| Max Efficiency | 96.5 % |
| Maximum Humidity | 95 % |
| Maximum Battery Charging Current | 88 A |
| Maximum Current Cont. | 25 A |
| MPPT Operating Voltage Range | [-?, +?] V |
| Number of AC Inputs | 1 |
| Number of AC Outputs | 2 |
| Parallel Operation | False |
| Peak Power Rating 3s | 9,000 W |
| Peak Power Rating 4m | 7,000 W |
| Pollution Level | 2 |
| Power Assist | True |
| Power Control | True |
| Programmable Relay | DC rating: 4A up to 35 V DC and 1A up to 70 V DC |
| Protection Category | IP21 |
| Protections | Output short-circuit, overload, high battery voltage, low battery voltage, over-temperature, AC voltage at the inverter output |
| Remote On/Off | True |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2, IEC 62040, IEC 62477 |
| Short-Circuit Current | 45 A |
| Three-Phase Operation | True |
| Transfer Switch Current Rating | 50 A |
| Weight | 11.2 kg |
| Width | 425 mm |
| Zero Load Power | 20 W |
Documentation
Weight and dimensions
| Weight | 14,95 kg |
|---|---|
| Dimensions | 23 × 56 × 49 cm |
