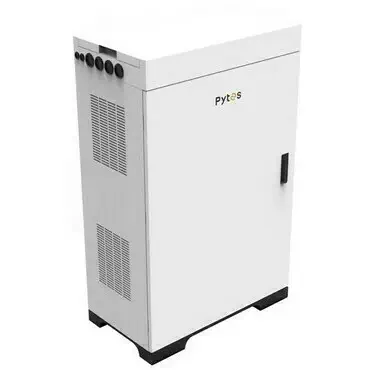

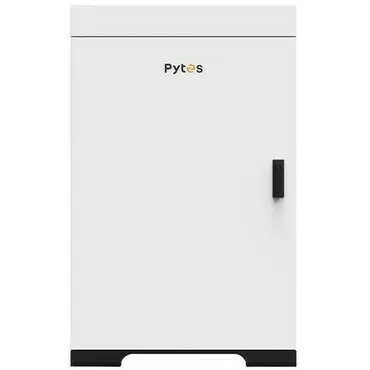

The Pytes Forest RB-PLUS is an advanced energy storage solution specifically designed to integrate up to 6 Pytes E-BOX 48100R battery modules into a single structured, neat and secure enclosure, offering a scalable solution up to 30.72 kWh capacity.

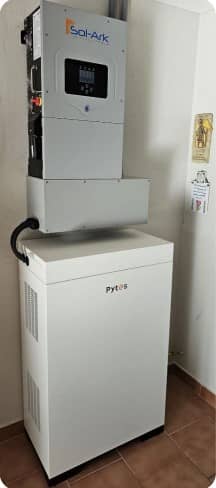

This equipment is positioned as a modular and scalable option, combining ease of installation with a robust design and ready to integrate with most inverters and energy management systems on the market.

Its robust construction, natural ventilation, secure mounting and compatibility with modern energy systems make it a reliable choice for residential and commercial projects with smart energy storage requirements.

Features of the Forest RB-PLUS Pytes box

Storage capacity and scalability

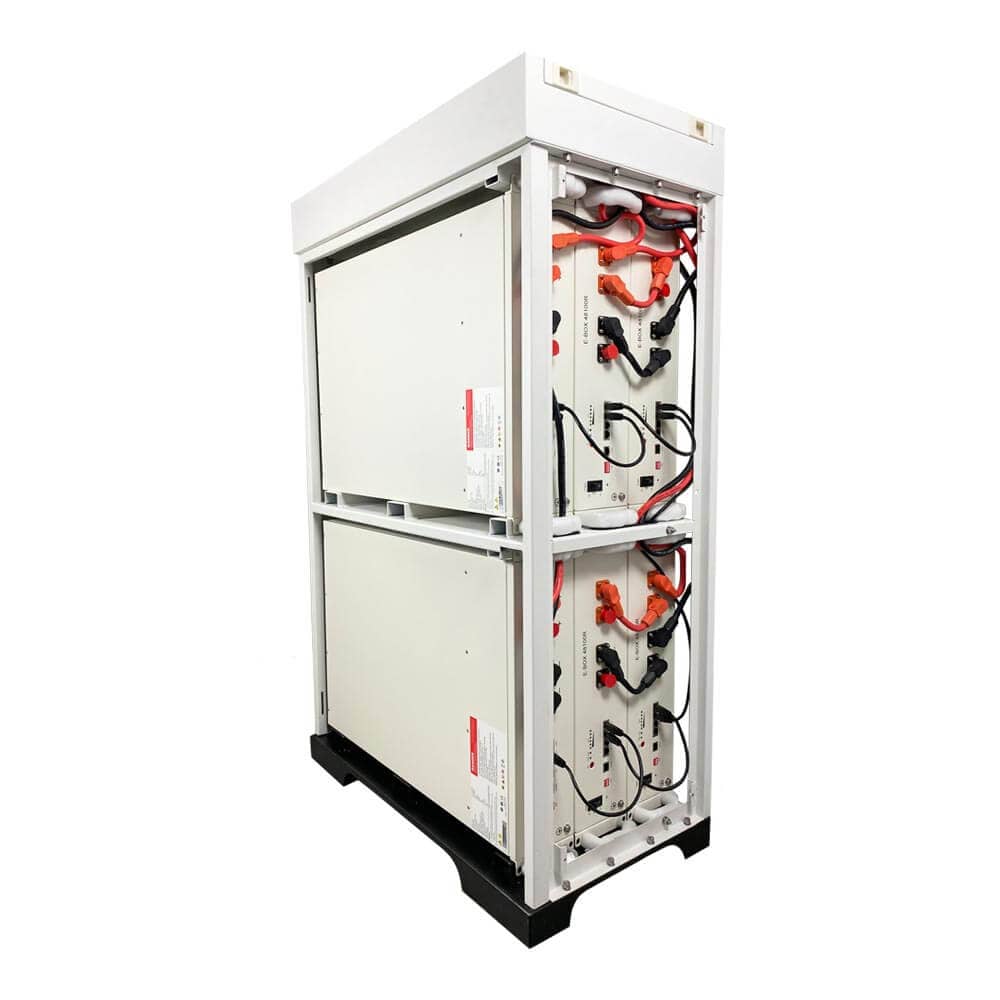

The Forest RB-PLUS enclosure can accommodate up to 6 Pytes E-BOX 48100R batteries, allowing a total storage capacity of up to 30.72 kWh (6 × 5.12 kWh per battery).

Thanks to its modular design, it is possible to start with a smaller number of batteries and progressively expand the capacity of the system without the need to replace the cabinet.
This feature is particularly useful in projects where energy demand is expected to grow.

Design

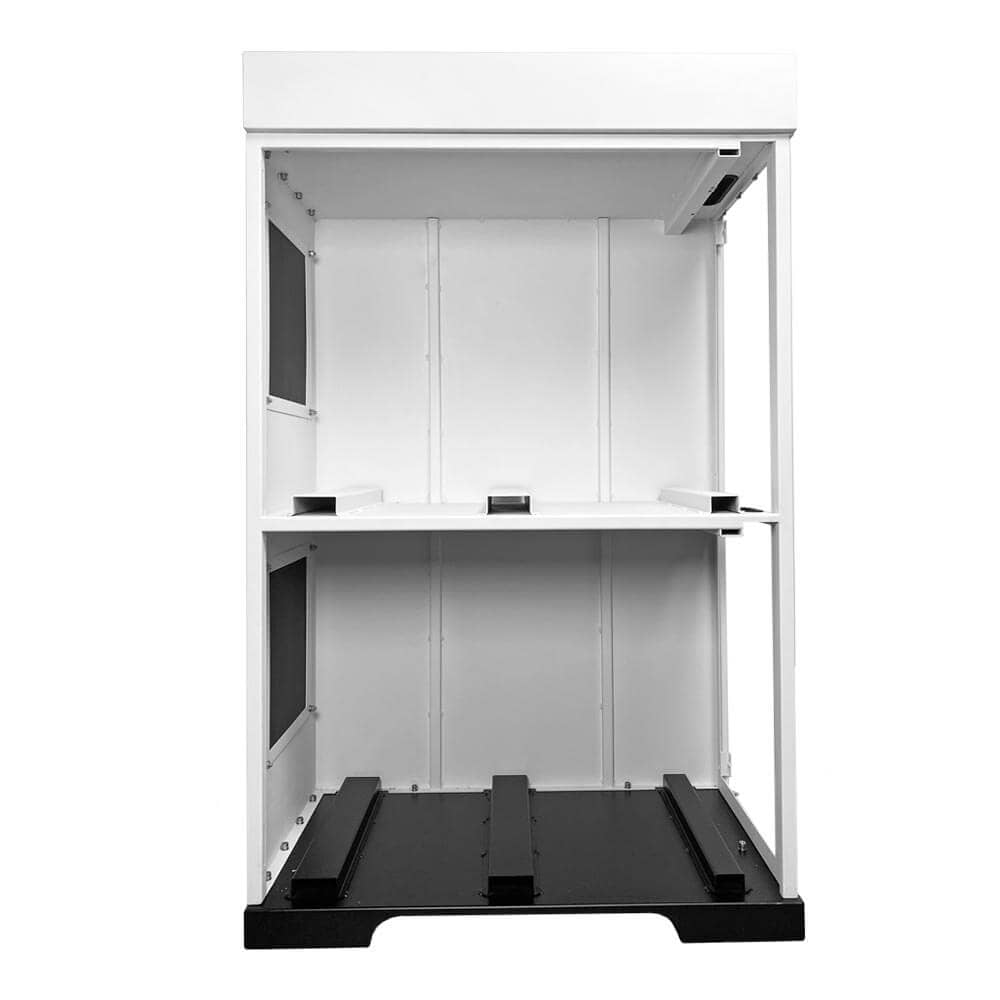

The Forest RB-PLUS structure is made of high-strength galvanised steel (SGCC), providing mechanical rigidity and protection for the battery modules against impacts and external agents in indoor environments.

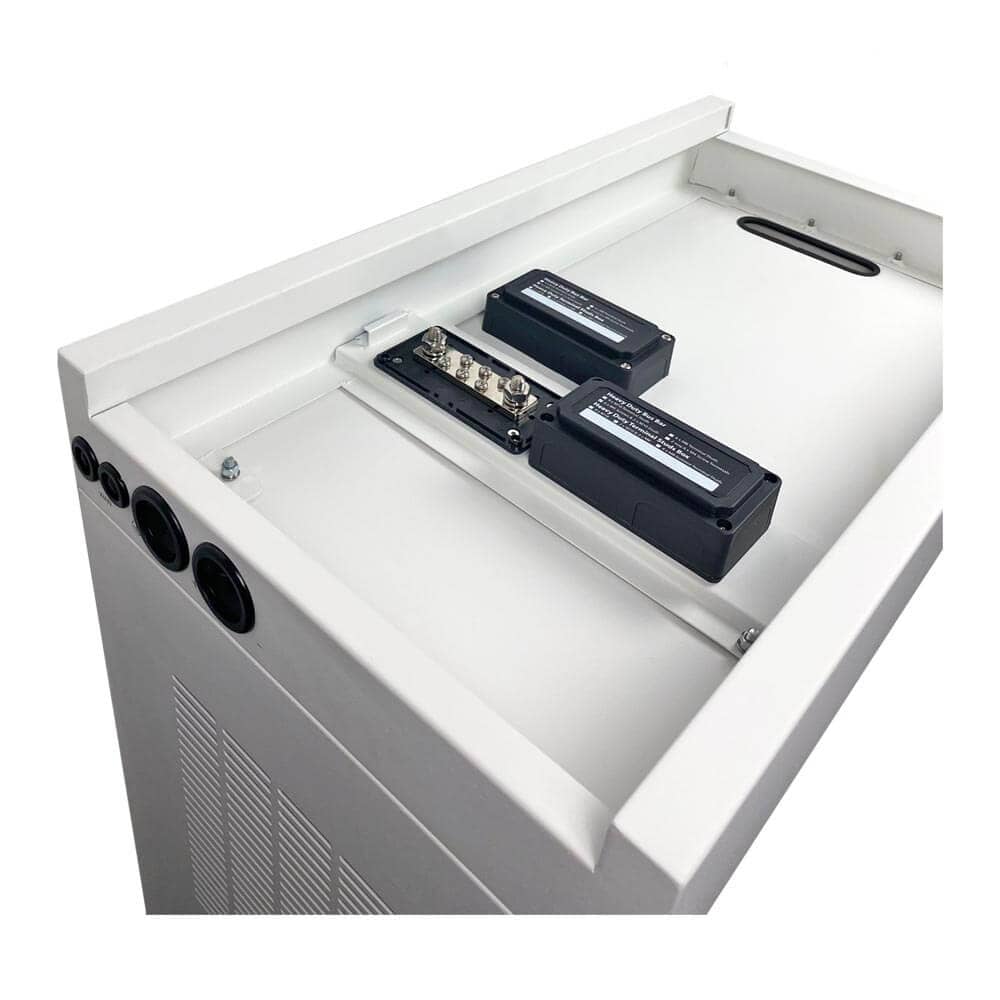

The cabinet design facilitates organised battery installation, with integrated busbars that simplify the connection of units and reduce visible wiring, improving both aesthetics and electrical safety.

Protection and ventilation

The Forest RB-PLUS enclosure offers IP20 environmental protection, suitable for indoor use, protecting the batteries mainly against dust and accidental contact with internal parts.

Cooling is handled by natural convection, with no built-in fans, which eliminates moving parts, reduces noise and minimises maintenance requirements.

Installation and maintenance

The design of the Forest RB-PLUS prioritises simple and tidy installation, with structural components and electrical connections accessible to technicians.

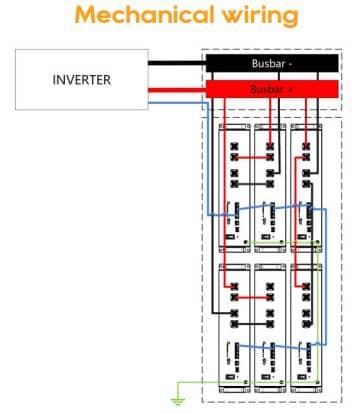

Integrated busbars and well-distributed connection points reduce assembly time and the margin of error in connections, facilitating future expansion of the system when capacity needs to be increased.

Technical specifications of the Forest RB-PLUS Pytes Box for E-BOX 48100R Batteries

Technical information on the Forest RB-PLUS Pytes Box for E-BOX 48100R batteries - 110409100166
