Details of the Pytes R-Bracket set for E-BOX-48100R batteries - 110409100019
Pytes R-Bracket set for E-BOX-48100R batteries - 110409100019

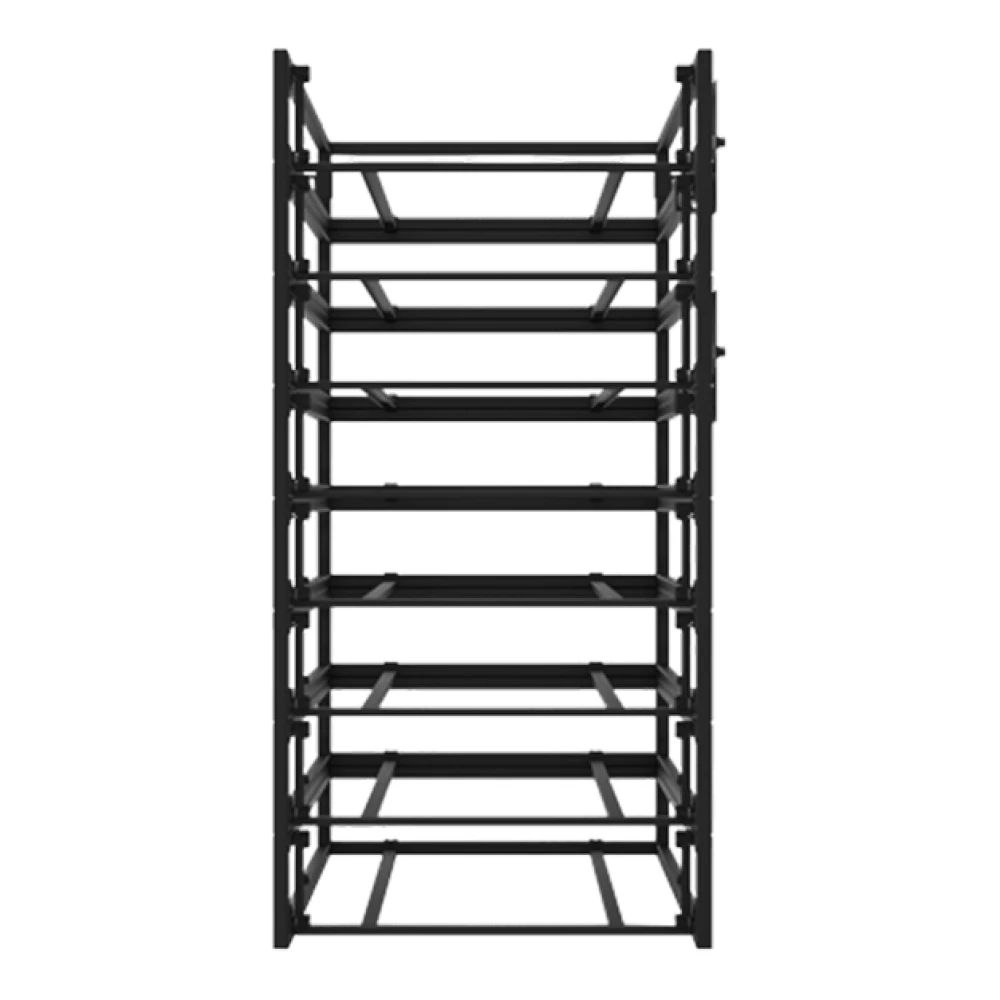

The Pytes set of 8 R-Brackets is a modular and robust mounting solution specifically designed to organise and stack E-BOX-48100R batteries efficiently and safely in energy storage facilities.
These racks are designed to provide a structural base to maximise storage capacity up to 40 kWh (8 × 5.12 kWh batteries each) without taking up excessive floor space, making them an alternative to traditional enclosed cabinets or racks.
Features of the R Pytes support set
Robust and lightweight design
Each set consists of 8 vertically stacked R-racks that can hold up to 8 units of Pytes E-BOX-48100R batteries.
This facilitates the installation of storage systems in both residential and light commercial environments, especially where usable space is limited.
The R-Bracket is made of robust and lightweight materials, designed to last and support the weight of the batteries without compromising the stability and safety of the bracket.
Its solid metal structure helps to arrange the batteries in the right space between each unit, promoting better ventilation and natural heat dissipation, which is important for maintaining efficiency.
In addition, its design facilitates mounting on a solid floor or additional fixing to a wall/solid structure to ensure stability.
Natural ventilation
The Pytes R-mount allows the battery to dissipate heat more efficiently because it is not covered by an enclosed structure, which helps to extend battery life and maintain an optimal operating temperature, reducing internal heating.
Installation and maintenance
The R-bracket is designed to allow intuitive mounting, with fittings to secure each battery in place and additional wall mounting possible if desired.
Maintenance is easy because direct access to the battery simplifies visual inspection, maintenance or replacement without the need to disassemble the structure.
Technical specifications of the R Pytes battery holder set E-BOX-48100R - 110409100019
| Specification | Detail |
|---|---|
| Product name | Support set R |
| Reference / Code | 110409100019 |
| Compatibility | Pytes E-BOX-48100R Batteries |
| Main function | Modular, stackable mounting structure for arranging up to 8 batteries vertically |
| Material | Cold rolled steel (robust structure) |
| Dimensions of each support | 53 × 72 × 13,5 cm (Width × Depth × Height) |
| Weight of each support | 7.7 kg |
| Total weight of the set | 61.6 kg |
| Stacking capacity | 8 holders to accommodate 8 batteries |
| Recommended assembly | Installation on solid ground; can be additionally fixed to wall/structure for stability |
| Ventilation | Open design facilitates natural ventilation between modules |
| Integrated busbars | Yes (to facilitate electrical connection between batteries) |
| Typical application | Residential and light commercial energy storage facilities |
Datasheet R Pytes battery holder set E-BOX-48100R - 110409100019
Weight and dimensions
| Weight | 61.6 kg |
|---|---|
| Dimensions | 53 × 72 × 108 cm |
