R-BOX NEMA3 Pytes enclosure for E-BOX 48100R batteries - 110409100173

R-BOX NEMA3 Pytes enclosure for E-BOX 48100R batteries - 110409100173

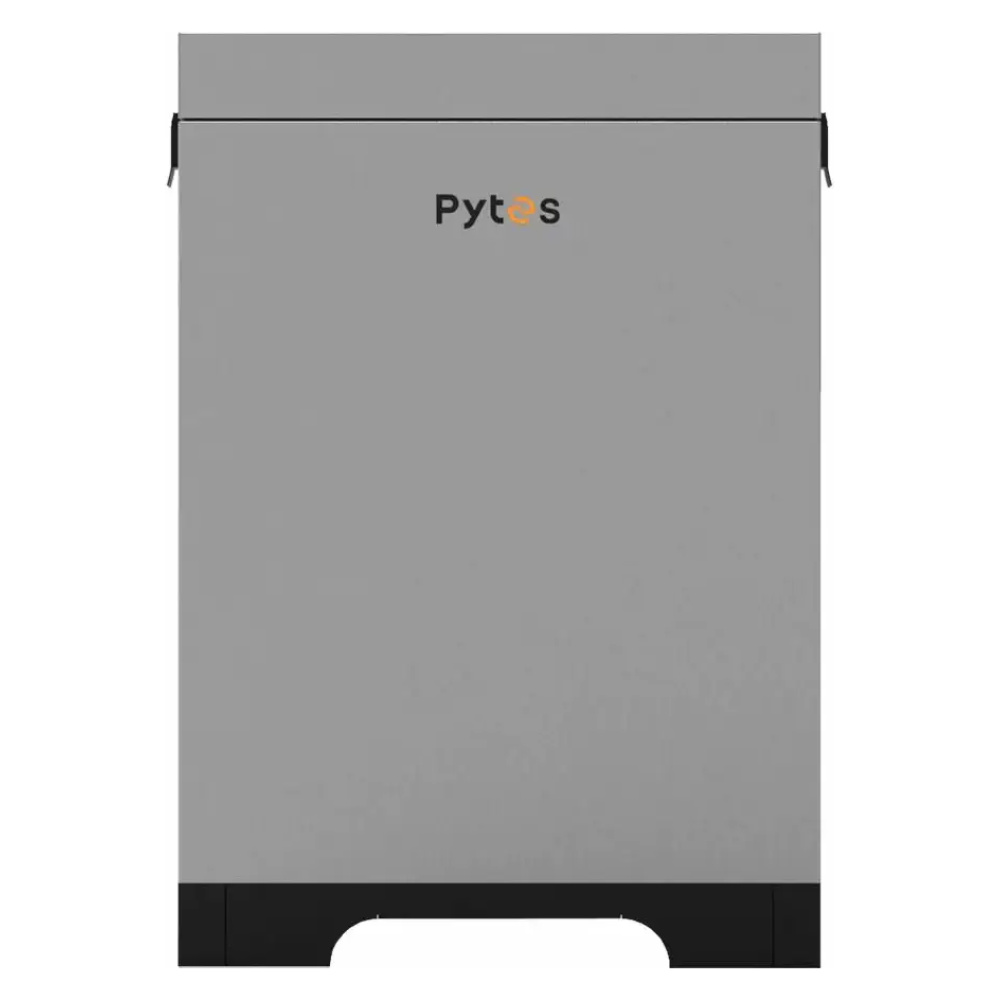

The Pytes R-BOX NEMA3 enclosure is a robust, aesthetically pleasing and functional storage structure or cabinet, specifically designed to house and protect E-BOX 48100R batteries, providing an integrated energy storage solution for domestic and light commercial installations.

It is a key component in solar energy storage or backup systems, the purpose of which is to organise, protect and facilitate the installation of Pytes battery modules in a safe and structured environment.

Its modular design, high level of finish and compatibility with multiple configurations make this product an essential part of smart and efficient energy solutions.

R-BOX NEMA3 Pytes R-BOX Enclosure Features

Design

The R-BOX NEMA3 enclosure is made of galvanised steel (SGCC), which gives it a solid and durable structure for indoor use.
Its finish is elegant and designed to blend visually into domestic spaces or technical rooms without being intrusive.

The cabinet ventilation is passive, i.e. based on natural convection without fans, resulting in very quiet operation and no moving parts, reducing maintenance and noise.

The enclosure is IP20 rated, suitable for indoor environments where dust ingress is minimised and there is no direct exposure to moisture or water.

Compatibility and capacity

The R-BOX NEMA3 enclosure is designed to accommodate up to two Pytes E-BOX 48100R batteries, each rated at 5.12 kWh of energy, giving a total installed capacity of up to 10.24 kWh.

In addition, Pytes' modular design allows the system to be extended by adding up to 3 boxes in parallel, achieving much higher capacities (up to 30.72 kWh) for residential installations with higher energy demands.

Electrical and functional integration

This box is designed to allow safe and tidy electrical connections between E-BOX batteries and other system components such as inverters, controllers and power management equipment.
It is compatible with standard communication protocols such as CAN and RS485, allowing battery monitoring and control to be integrated with inverters and intelligent management systems.

This makes it easy to monitor battery health, state of charge (SoC), cycling statistics and other key parameters within a solar or backup power system.

R-BOX NEMA3 Pytes R-BOX Enclosure for E-BOX 48100R Batteries Technical Specifications

Technical information R-BOX NEMA3 Pytes R-BOX Box for E-BOX 48100R batteries - 110409100173

R-BOX NEMA3 Enclosure Data Sheet

R-BOX NEMA3 Enclosure Installation Guide
