Details of the Pytes R-Bracket for E-BOX-48100R batteries - 110409100020

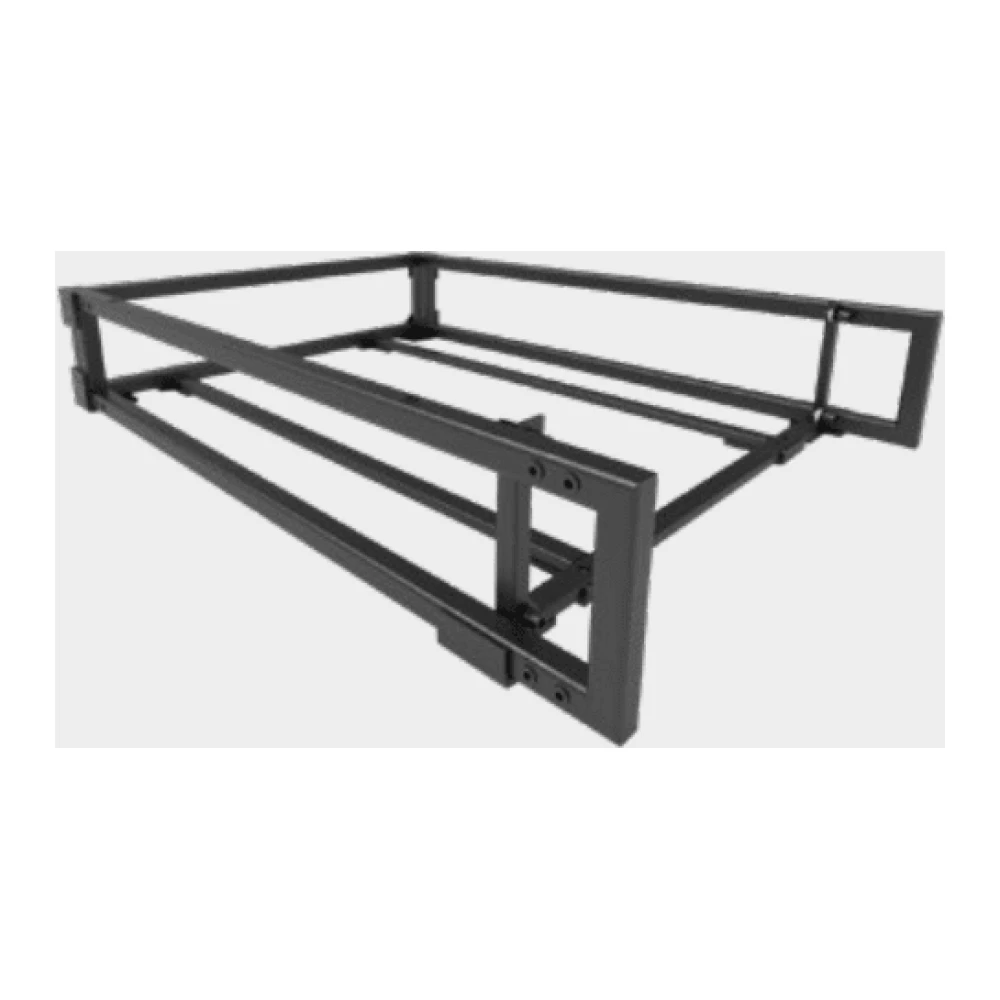

Pytes R-Bracket for E-BOX-48100R batteries - 110409100020
The Pytes R-Bracket is a versatile, modular and robust solution designed specifically for Pytes E-BOX-48100R batteries.
This bracket facilitates an orderly, safe and efficient installation of one or more battery modules in domestic, light commercial or photovoltaic systems with storage.
The R bracket is designed to optimise both space utilisation and ease of installation, reducing the need for bulky metal cabinets and allowing vertical mounting with natural ventilation.
Its stackable design, moderate weight and ease of installation make it a key piece for those looking to maximise space, ventilation and accessibility in their facilities.
Features of the R Pytes bracket
Robust and lightweight design
The R-Bracket is made of robust, lightweight materials designed to last and support the weight of the E-BOX-48100R batteries without compromising the stability and safety of the bracket.
The configuration of these supports allows the modular and vertically stackable installation of one or several batteries to adapt to the energy demand of the system, allowing up to 8 units to be fitted.
In addition, its design facilitates mounting on a solid floor or additional fixing to a wall/solid structure to ensure stability.
Natural ventilation
The Pytes R-mount allows the battery to dissipate heat more efficiently because it is not covered by an enclosed structure, which helps to extend the life of the battery and maintain an optimal operating temperature.
Installation and maintenance
The R-bracket can be mounted individually or as part of a modular grouping, adapting to various spaces and integrations.
Maintenance is easy because direct access to the battery simplifies visual inspection, maintenance or replacement without the need to disassemble the structure.
Technical specifications of the R Pytes battery holder E-BOX-48100R - 110409100020
| Specification | Detail |
|---|---|
| Product name | R-Bracket (R-Bracket) |
| References / compatible use | Compatible with batteries E-BOX-48100R |
| Main function | Stackable battery mounting bracket; allows for vertical modular organisation |
| Material | Cold-rolled steel |
| Stacking capacity | Up to 8 stacked holders (for 8 batteries) |
| Dimensions (unit) | 530 × 720 × 135 mm |
| Weight (unit) | 7.7 kg |
| Recommended assembly | On solid ground; if stacked vertically, wall mounting is recommended. |
| Ventilation / thermal management | Open design with natural ventilation |
| Integrated accessories | DC busbars / DC conductors for easy battery connection |
Datasheet R Pytes battery holder for E-BOX-48100R batteries - 110409100020
Weight and dimensions
| Weight | 7.7 kg |
|---|---|
| Dimensions | 53 × 72 × 13,5 cm |
