Pytes E BK1 E-BOX-48100R Battery Mounts - 151204100208

Pytes E BK1 E-BOX-48100R Battery Mounts - 151204100208

Pytes E BK1 brackets are specifically designed to facilitate the organisation, stacking and installation of E-BOX-48100R modular batteries in a safe, stable and compact manner.

These holders allow up to six batteries to be stacked vertically on top of each other, ensuring optimal air circulation for efficient heat dissipation. This prolongs battery life and optimises battery performance.

E BK1 Pytes E-brackets features

Design

E BK1 housings are made of galvanised steel (SGCC), which guarantees mechanical strength and corrosion protection for indoor applications.

Their modular, functional and open design allows for better heat dissipation, making them ideal for domestic installations as well as commercial or industrial systems.

The E BK1 has a sturdy and stable base for the E-BOX-48100R battery, which ensures durability and stability and prevents vibration or shifting during normal use.

Heat dissipation

E BK1 brackets facilitate natural ventilation between battery units, which contributes to better heat dissipation, optimal air circulation and, in general, increased system durability and safety.

Vertical stacking

The E BK1 allows up to six E-BOX-48100R batteries to be stacked vertically, saving space and promoting a tidy configuration.

Installation and maintenance

The E BK1 brackets are intended for floor or base mounting, but also allow for structural configurations where multiple batteries need to be stacked vertically and securely fastened together.

Maintenance is made easy because access to each battery is clear for inspection, connection or replacement.

Compatibility

The E BK1 are specifically designed for Pytes E-Box 48100R battery modules.

Thanks to their modular and standard design, these brackets can be integrated into both new installations and existing systems without the need for bulky or costly additional structures.

What is included in the E BK1 brackets?

The E BK1 includes everything you need for a basic and safe installation:

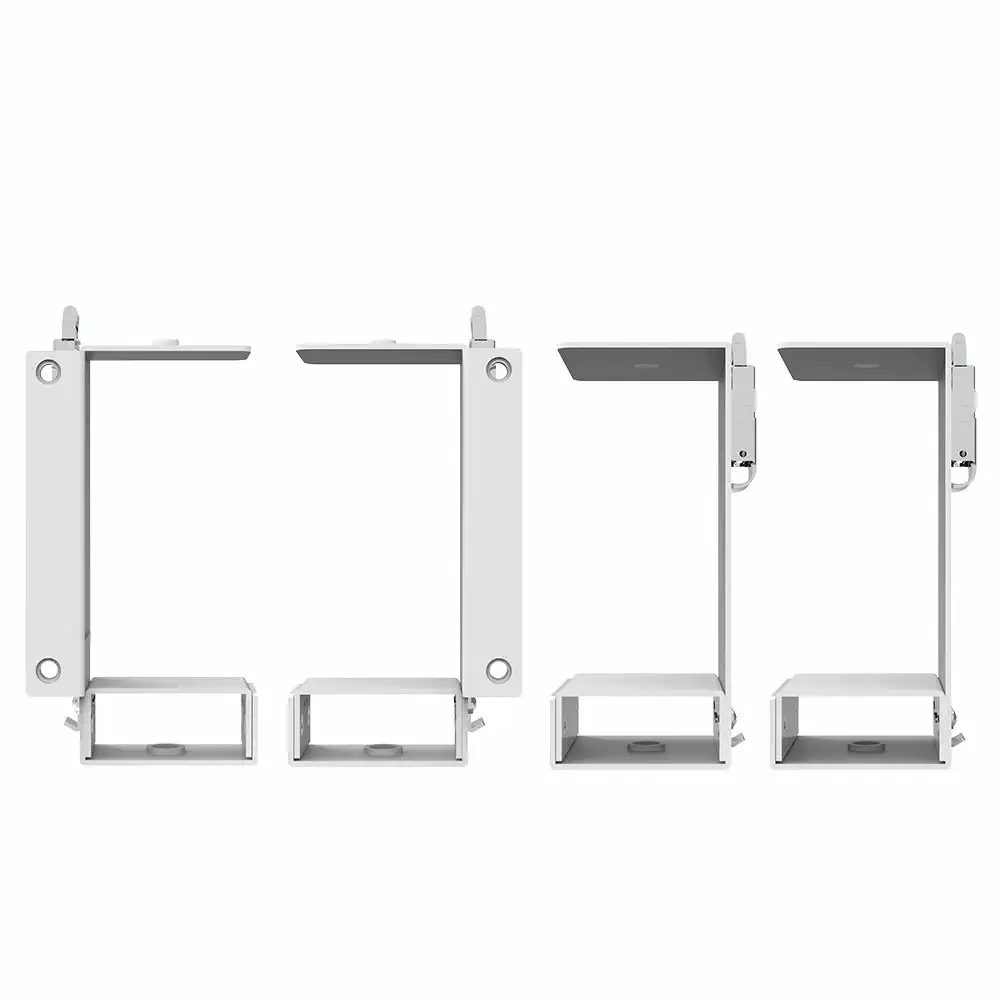

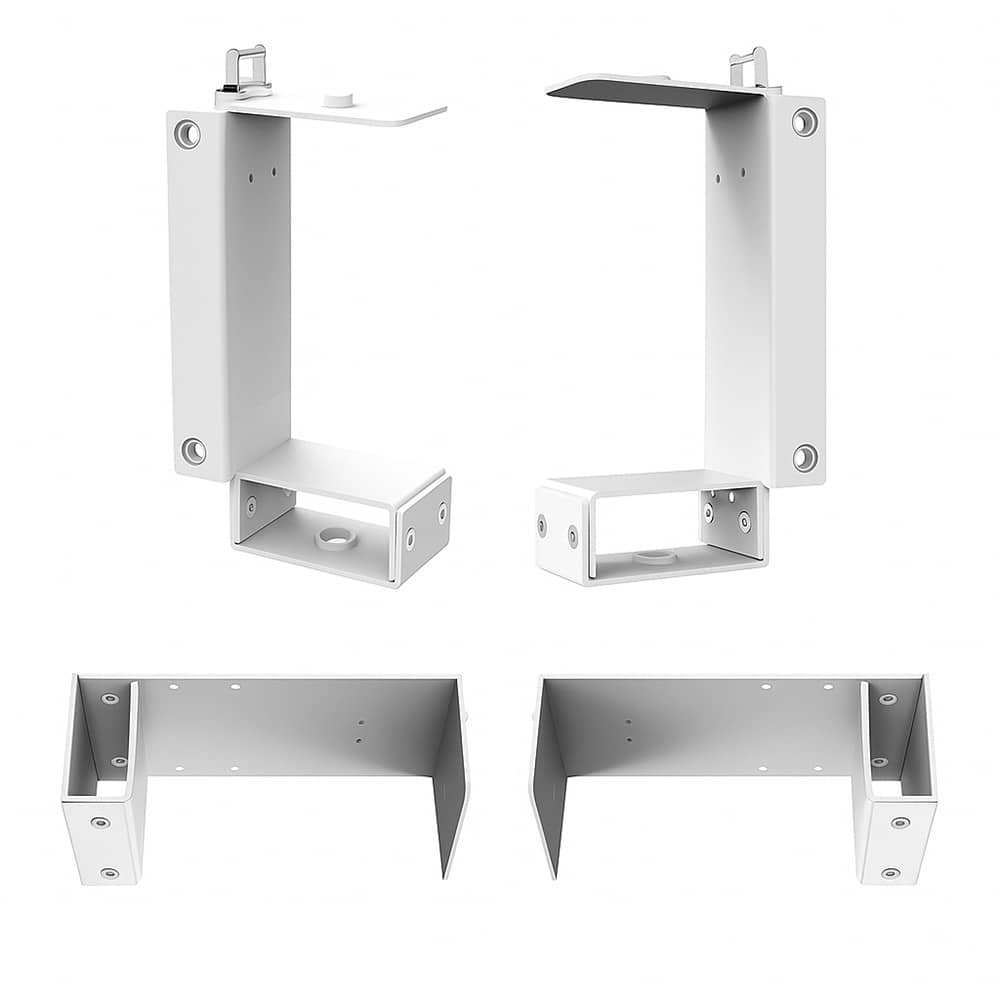

• 1 right front bracket and 1 left front bracket: that hold the front part of the battery
• 2 rear brackets: that secure the back of the battery and complete the structure.
• 4 hexagonal screws: for firm mounting
• 8 cross head screws (Phillips): to secure the brackets to the battery structure
• 1 instruction manual: to facilitate the assembly and installation of the brackets
