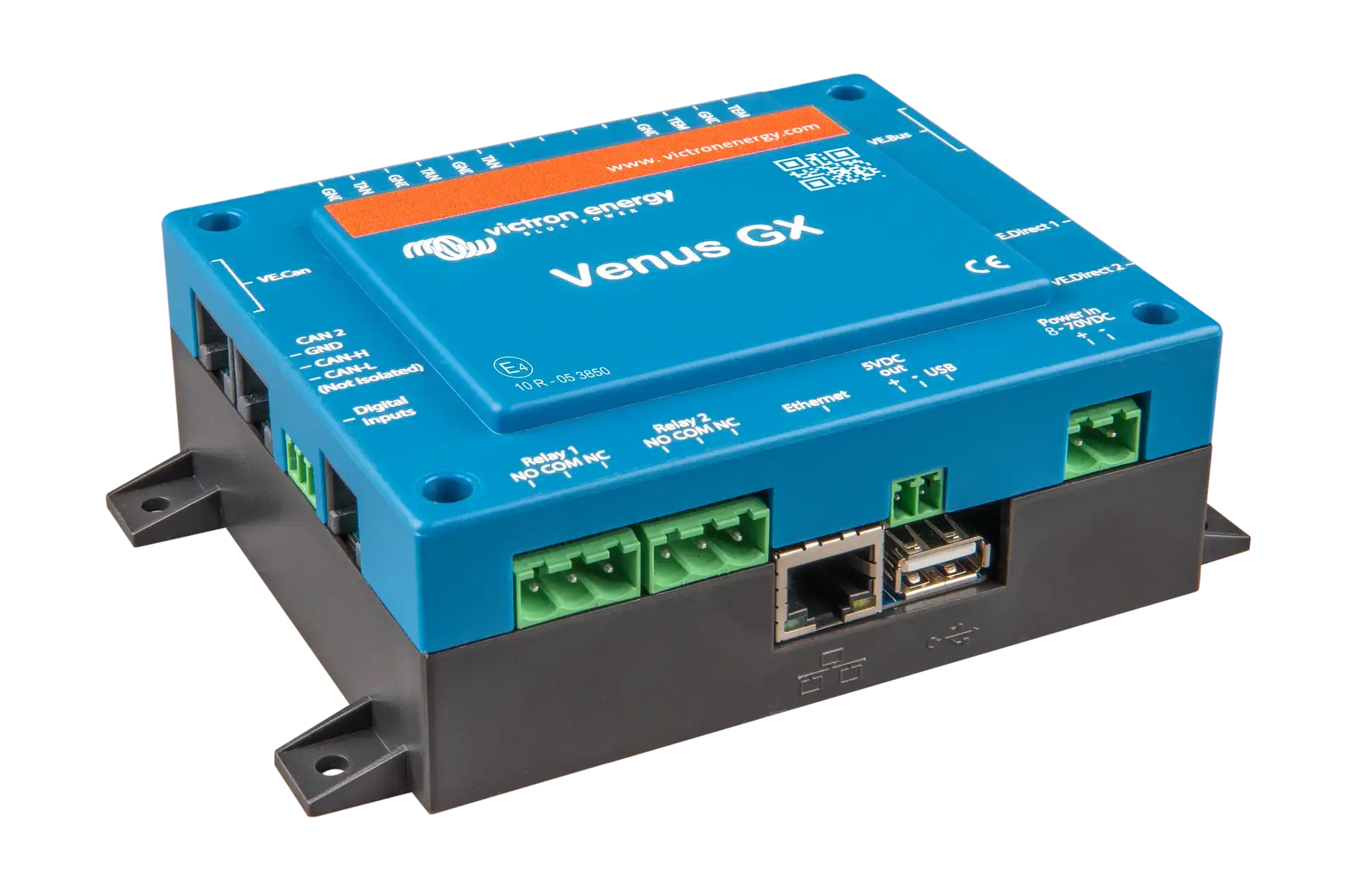

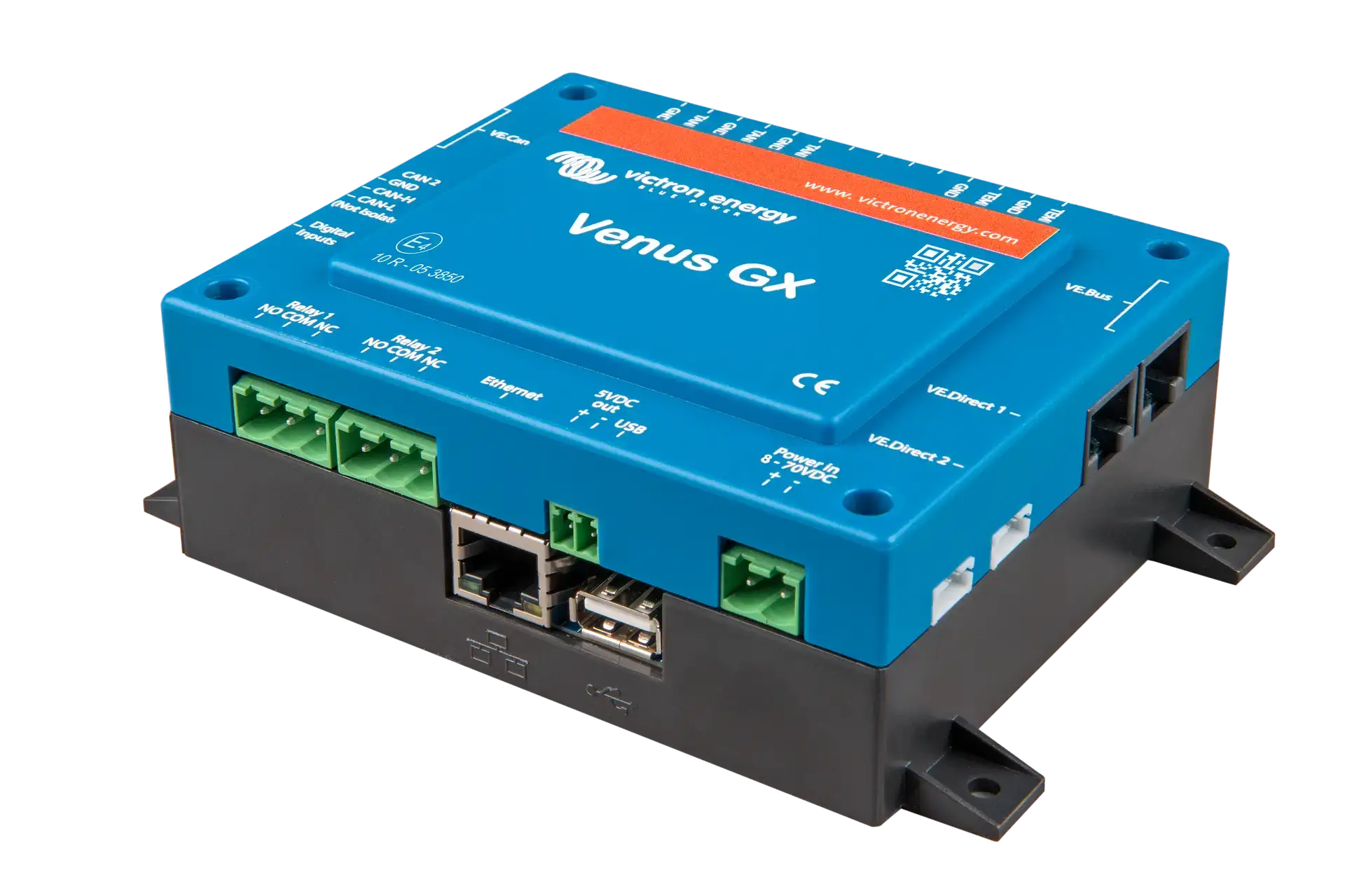

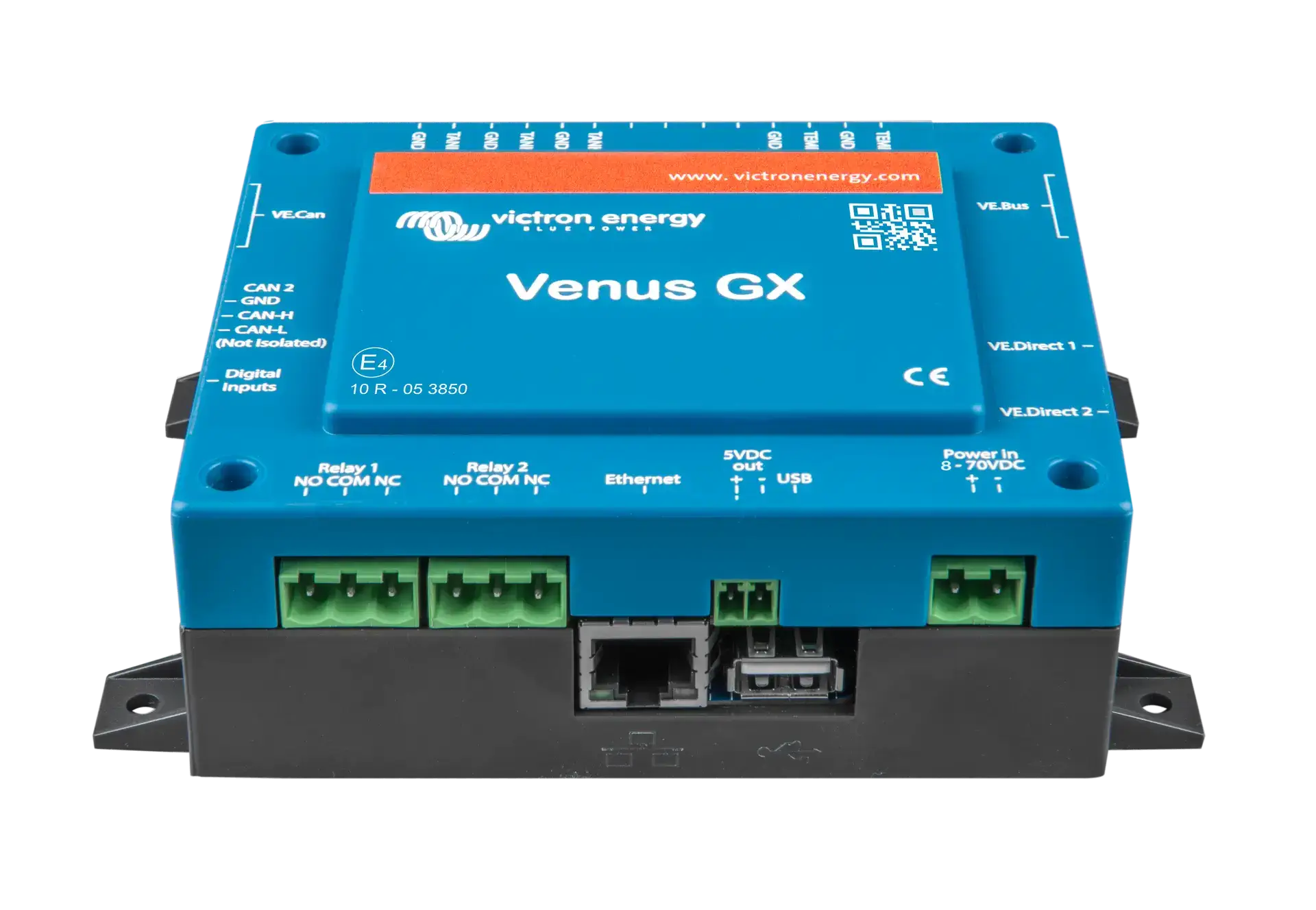

Victron Venus GX Monitoring
224,61€
TAXES INC.
Victron Venus GX control and monitoring system.
By means of this control and monitoring unit, you can interconnect any Victron device present in the installation. Thanks to this direct communication between the different components, they can share information with each other and visualise the status of the installation through the Victron VRM portal.
Availability: Hay existencias
Producto disponible para la venta
Finance your purchase with Cetelem
Product information
Victron Venus GX Monitoring
The Venus GX is the communications hub of your installation. Venus allows you to communicate with all the components of your system to make sure they work in harmony. Real-time data monitoring and changing settings can be done using a smartphone (or other device) via our free-to-use Victron Remote Management (VRM) Portal.
The Venus GX offers intuitive control and monitoring of all Victron electrical systems. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Bypass and more.
Compatible products
- Multis and Quattros, including three-phase and split-phase systems. Monitoring and control (On/Off and current limiter). Configuration change possible (only remotely via Internet, not without Internet connection).
- EasySolar 1600VA
- BlueSolar MPPT solar chargers with VE.Direct port.
- BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port.
- SmartSolar MPPT 150/70 and the MPPT 150/100 with VE.Can port. If several BlueSolar MPPT or SmartSolar MPPT with VE.Can are used in parallel, all combined information will be displayed. See also our blog on synchronisation of multiple MPPT 150/70 solar chargers.
- The BMV-700 family, like the Battery Monitor BMV-700 Victron - BAM010700000Direct, you can connect directly to the VE.Direct ports of the Venus GX. To do this, use the VE.Direct cable.
- The BMV-600 family can be connected to the VE.Direct ports of the Venus GX. An accessory cable is required.
- Lynx Ion + Bypass
- BMS Lynx Ion
- Lynx VE.Can shunt
- Skylla TG battery chargers
- NMEA2000 tank sensors
- A USB GPS can be connected to the USB port. The data is sent to the VRM Portal for tracking purposes. The map on the VRM will show the last position.
- PV Inverters Fronius
Intuitive system overview - everything you need to know
As soon as you log in, Venus GX instantly provides an overview of the system: battery state of charge, current power consumption, PV panel energy production, energy from the grid/generator.
The full power of Victron Remote Management
Victron Remote Management (VRM) allows access to the full range of controls and settings for all system components connected to the CCGX or Venus GX. Any user or installer can log in, from anywhere, at any time. This powerful application also offers the ability to seamlessly perform diagnostics and analysis of archived information.
Automatic generator start/stop
The Venus GX can be programmed to automatically start your generator based on low voltage, high demand or battery state of charge criteria. It can also be set to delay start-up until the end of "quiet" periods, thus avoiding accidental disturbance in the middle of the night.
Remote console
The Remote Console allows you to view the Venus GX's data and settings in real time... and because it's remote, you can do it from anywhere in the world.
Energy storage systems - 24-hour monitoring
The Venus GX can manage energy storage systems. It maintains battery backup at 100%, starts in case of blackout and diverts excess (solar) energy to self-consumption, saving money.
Remote control electrical devices on your boat or caravan
Planning a trip? Remotely controlling the Venus GX allows you to make sure your boat or caravan will be ready to go. The Venus GX also allows you to communicate with third-party devices if they are connected.
Notable features
- When connected to the internet, the Venus GX automatically updates itself if a new software version is available.
- Multiple languages: English, Czech, German, Spanish, French, Italian, Dutch, Russian, Swedish, Turkish, Chinese, Arabic.
- Use the Venus GX as a Modbus-TCP gateway to all connected Victron products.
- With integrated operating system Linux Venus OS.
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 5 × 15 × 10 cm |
