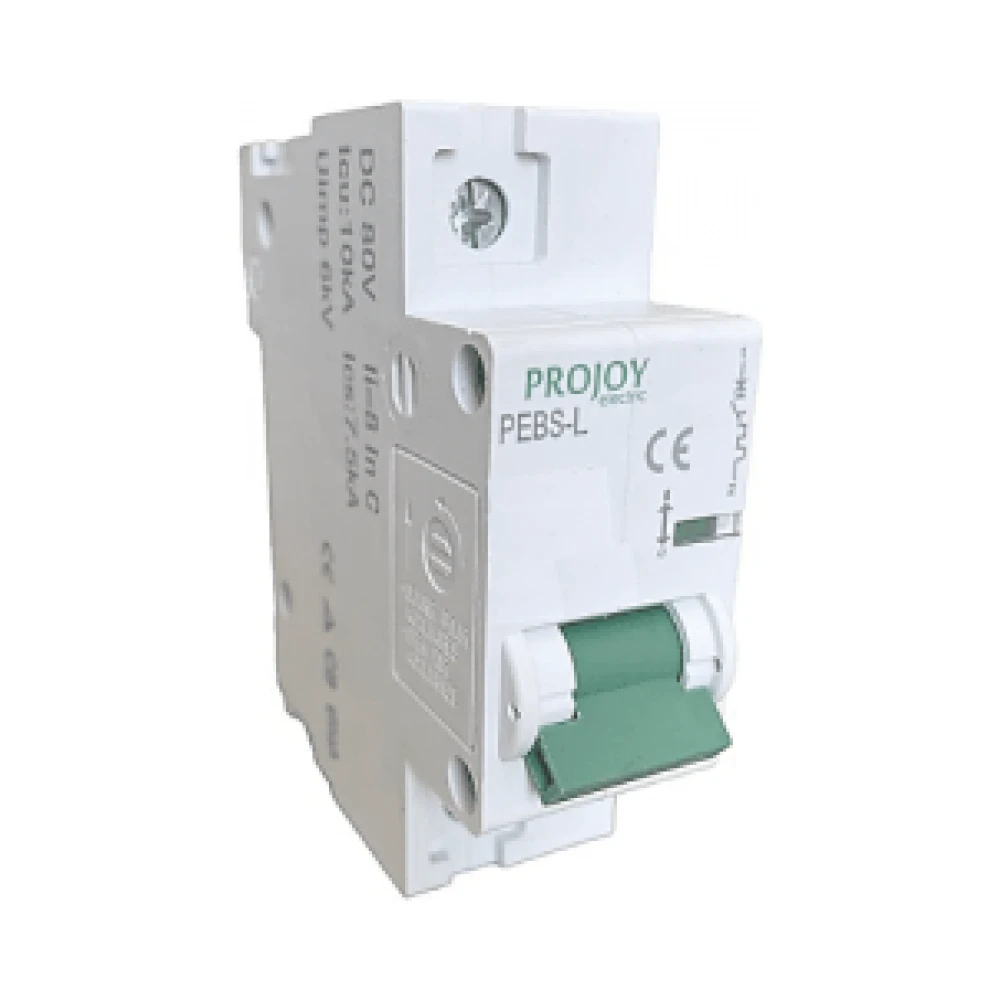

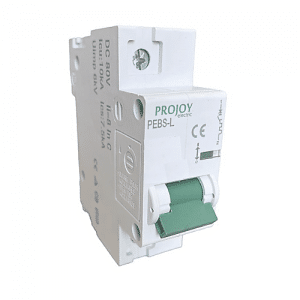

Circuit breaker1 Pole 125A 80VDC Projoy PEBS-L-125 - 17.01PEB0410

Circuit breaker PEBS-L-125 1P 125A 80VDC Projoy - 17.01PEB0410

Projoy's PEBS-L-125 is a miniature magneto-thermal circuit breaker (MCB) designed for direct current (DC) systems. Its main function is to protect electrical circuits against overloads and short circuits, especially in solar photovoltaic applications, batteries, storage and DC systems in general.

Characteristics of the PEBS-L-125 Projoy circuit breaker

• Rated current: 125A
• Poles: 1P
• Rated voltage: 80VDC
• Insulation voltage: 500V
• Breaking capacity: 10000A
• Triggering technology: Thermal-magnetic
• Rated impulse voltage: 6kV
• Maximum short-circuit breaking capacity Icu: 10 kA
• Rated service short-circuit breaking capacity Ics: 7,5 kA
• Degree of contamination: 3
• Electrical life: 1000
• Mechanical life: 10000
• Degree of protection: IP40; Wiring port IP20
• Ambient temperature: -30℃ - +70℃
• Storage temperature: -40℃ - +85℃
• Mounting: 35 mm DIN rail
• Physical indicators: Usually includes a visible handle for ON/OFF status and a default trigger signal.
• Housing material: Flame-retardant and heat-resistant material.

Technical information of the circuit breaker PEBS-L-125 1P 125A 80VDC Projoy - 17.01PEB0410

PEBS-L-125 circuit breaker data sheet
