The Maxge Alpha+ 4P, 20A circuit breaker is an automatic circuit breaker designed to protect three-phase installations with neutral against overloads and short circuits.

It is a widely used option in industrial and commercial environments.
It also fits perfectly into more complex switchboards where reliability, safety and continuity of service are required.

This circuit breaker combines a robust design with advanced technical features.
It is therefore an effective and reliable solution for the protection of electrical circuits under demanding working conditions.
This helps to prevent breakdowns, equipment damage and electrical hazards.

Main features of the Maxge Alpha+ 4P, 20A circuit breaker

Configuration and electrical capacity

The Maxge Alpha+ 4P, 20A magneto-phonic has a 4-pole configuration (3 phases + neutral), This allows complete protection of all conductors in a three-phase installation at the same time.

This circuit breaker has a rated current of 20 amps, value for which its thermal and magnetic triggering system is designed.
This ensures accurate and reliable protection.

In addition, it has a operating voltage of up to 415/240 V AC, This makes it suitable for most standard three-phase installations.

Firing curve and type of load

It incorporates a trigger curve type C, This means that it can withstand small current peaks at start-up (between 5 and 10 times the rated current) without flashover unnecessarily.

This makes it particularly suitable for circuits with inductive loads or circuits that generate moderate current peaks on start-up.
This makes it ideal for small engines, ballasted lighting systems or light machinery, as such peaks are common in such equipment.

Protection capacity

The Maxge Alpha+ 4P, 20A circuit-breaker offers a 10 kA (10,000 A) breaking capacity.
This allows you to safely interrupt high-current short circuits without damaging yourself or the device or the installation.

Connection and installation

In terms of installation, the Maxge Alpha+ MCB is designed for DIN rail mounting.
This facilitates their integration into standard control panels and simplifies both installation and maintenance.

Your connection terminals allow the use of fairly common copper cables (25 mm² in flexible cable and 35 mm² in rigid cable), ensuring a firm and reliable connection and making assembly much easier.

Dimensions and design

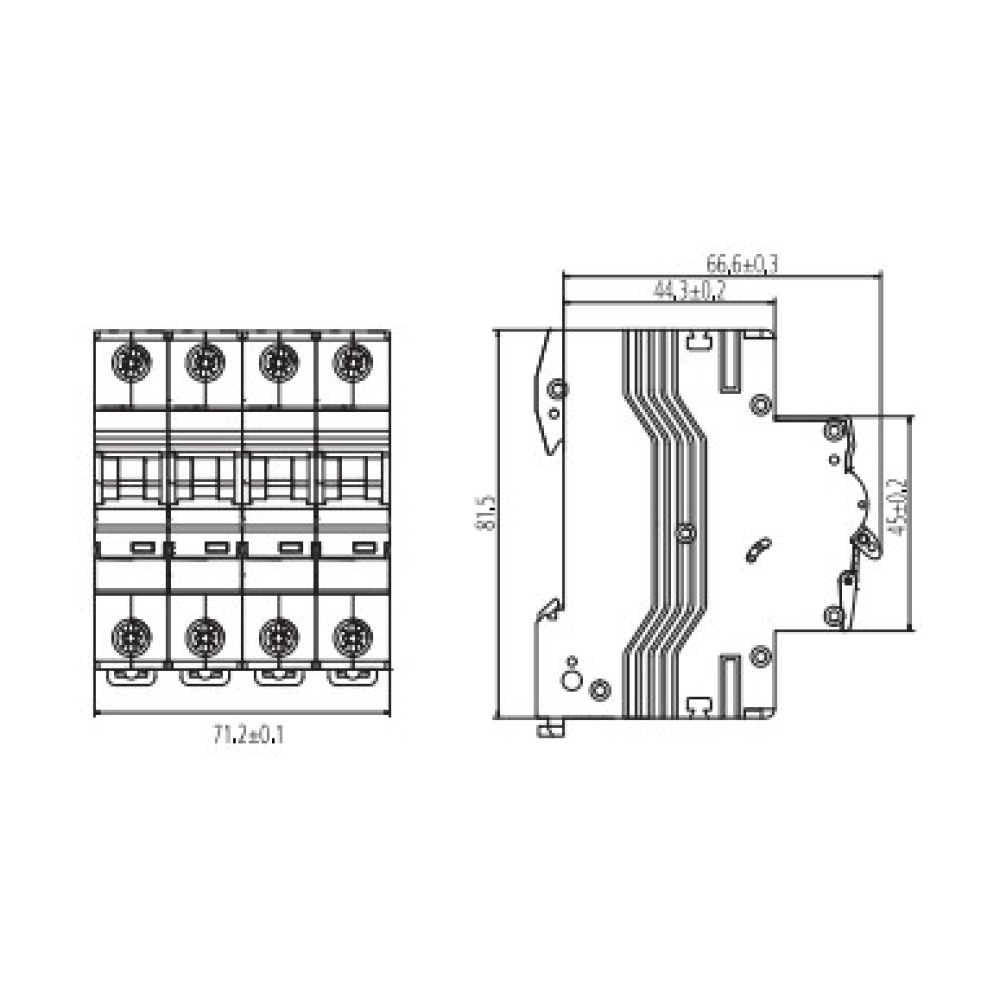

This circuit breaker has a compact design, occupying some 72 mm wide (18 mm per pole), optimising the space available in the electrical panel.
It also includes a visual signalling of the state (on/off) and a window for circuit marker, This facilitates rapid diagnosis, maintenance and identification of protected circuits.

Performance conditions

The Maxge Alpha+ 4P, 20A is designed to work in a single phase, single phase, single pole or double pole. temperature range from -5 °C to +40 °C.
It is therefore suitable for most industrial and commercial indoor environments.

Regulations and certifications

This circuit-breaker complies with the standard EN/IEC 60898-1, for low-voltage circuit-breakers.

It also has certifications such as CE, RoHS, VDE and KEMA-KEUR.
This guarantees that it is a high quality, safe, reliable circuit breaker manufactured to international standards.

Maxge Alpha+ 4P, 20A, C-curve, 10kA - EPB63H4C20 - Operation and Applications

This circuit breaker combines two complementary protection systems:

• Thermal triggering, The new cable protection system, which protects against prolonged overloads and prevents the cables from overheating, is also available as an option.
• Magnetic triggering, The new system, which responds immediately to short-circuits or serious faults, cutting off the power quickly and safely.

Thanks to these features, the Maxge Alpha+ 4P, 16A, curve C. 10kA - EPB63H4C16 is ideal for the protection of three-phase circuits in workshops, industrial buildings, shops or service installations. It is used where a good balance of fast tripping, peak current tolerance and high breaking capacity is required.

Main advantages of Maxge Alpha+ 4P, 20A

The advantages of this circuit breaker are as follows:

• Protege effectively against overloads and short circuits in three-phase networks with neutral.
• It offers a high breaking capacity of 10 kA, suitable for demanding environments.
• It incorporates a firing curve C balanced, ideal for multiple industrial applications.
• It presents a modular assembly and allows a easy identification of circuits.
• It is compatible with wide-section cables and with additional accessories.
• It is manufactured in accordance with international regulations, and also has recognised quality certifications.

Maxge Alpha+ 4P, 20A, C-curve, 10kA - EPB63H4C20 - Technical Information

Maxge Alpha+ 4P, 20A circuit breaker technical data sheet

Maxge Alpha+ 4P, 20A circuit breaker technical data
