Pytes V5a PLUS 51.2V/5.12kWh LiFePO4 lithium battery - 110402100134
1.108,66€
TAXES INC.
- Rated voltage: 51.2 V
- Nominal energy: 5.12 kWh
- Voltage range: 47.5 - 57.6 V
- Rated capacity: 100 Ah
- Recommended charging/discharging current: 75 A
- Operating temperature range: -10°C - +50°C
- Life cycles: 6,000
- Weight: 45.34 kg
- Dimensions: 48,4 x 57,82 x 14 cm
- Warranty: 10 years
Product available for sale
Finance your purchase with Cetelem
Details of the Pytes V5a PLUS 51.2V/5.12kWh LiFePO4 lithium battery - 110402100134

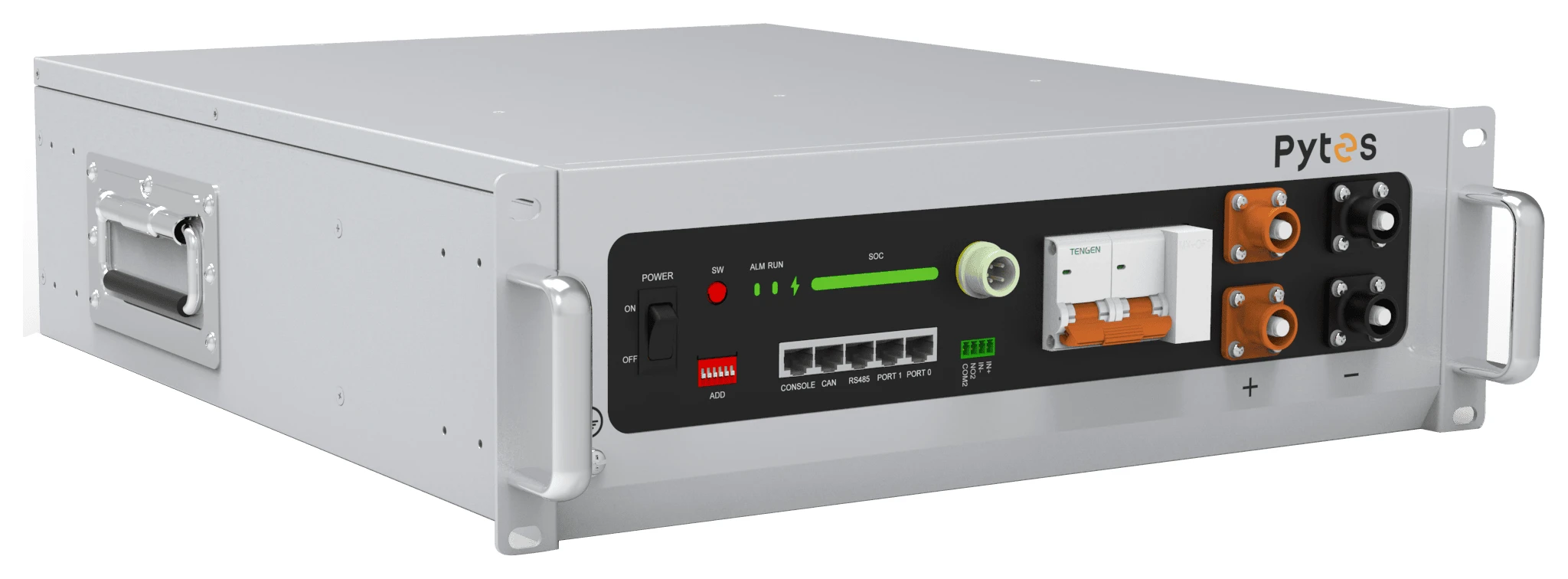

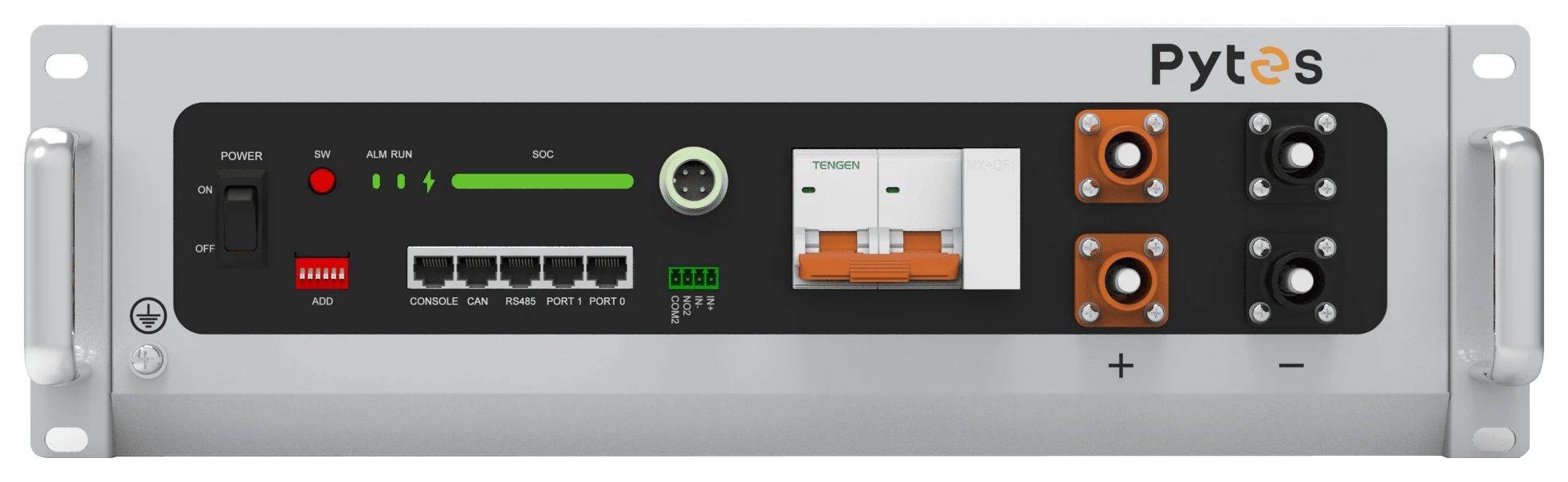

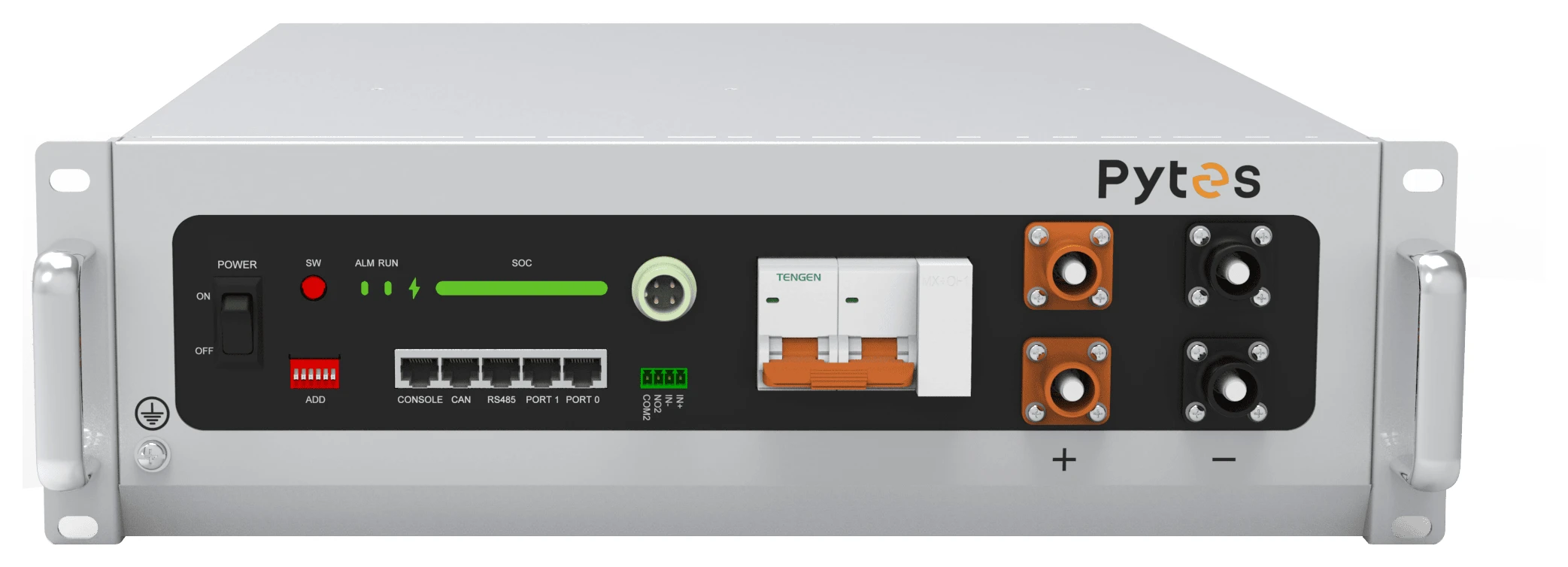

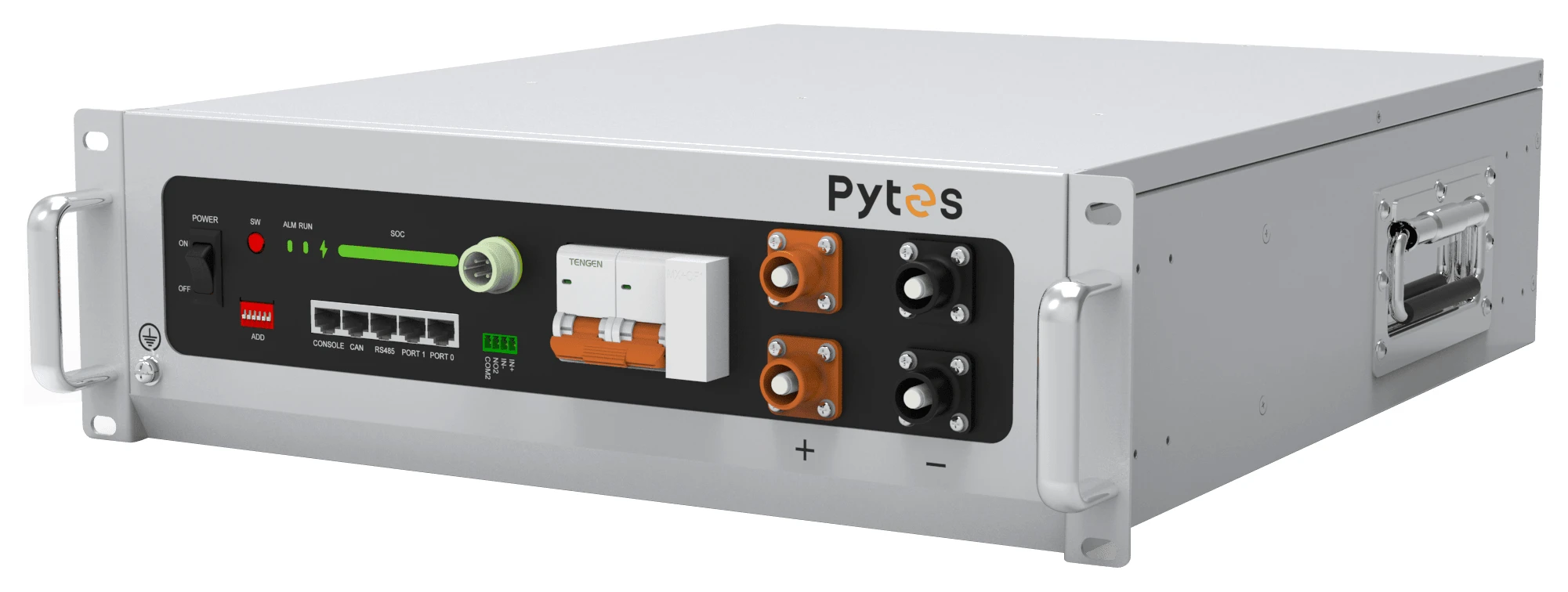

51.2V/5.12kWh LiFePO4 Pytes V5α PLUS lithium battery - 110402100134
Pytes' V5α PLUS is a high-tech lithium-ferrophosphate (LiFePO₄) battery module, offering very long life, high cycling resistance, industrial-grade safety, plug-and-play expansion and excellent performance.
With a nominal voltage of 51.2V, a capacity of 5.12kWh, high cycle stability (>6000 cycles at 90% DoD) and intelligent energy management, it enables maximum independence from the mains.
The battery is compatible with many inverters and can be extended up to 430 kWh.
The V5α PLUS battery is designed to provide reliable, efficient and safe energy storage in photovoltaic installations, grid backup systems, solar self-consumption or off-grid applications.
Its modular, rack-mountable design offers advanced BMS protection, fire suppression, remote monitoring and easy parallel scalability from a single unit to large capacity configurations without hassle.
Pytes V5α PLUS Battery Features
Design
The V5α PLUS battery is manufactured in a robust 19″ standard format housing, designed for rack, floor or wall mounting.
Its long-lasting design has more than 10 years of service life, which can be extended up to 20 years (depending on use and conditions).
In addition, its LiFePO₄ (LFP) chemistry offers greater thermal stability, safety against overheating and a longer lifetime compared to traditional lithium chemistries.
Intelligent battery management (BMS)
The V5α PLUS battery incorporates an integrated system that protects against short circuits, overcharging, overcurrent, unbalance and overtemperature, increasing reliability and extending battery life.
In addition, it features low-temperature warning protection and reverse power cable protection, as well as intelligent charging and cell balancing, and a calculation of the remaining battery power.
Triple Safe Protections
The V5α PLUS battery module includes an advanced BMS protection system, emergency shutdown switch and an aerosol fire suppression system for increased operational safety.
Duration and efficiency
This battery features a cycle life of ≥6000 cycles at 90 % depth of discharge (DOD), Ret at 70 %, 25 ℃, which translates into many years of daily operation with very little degradation.
Its cycle efficiency is superior to the 95%, which means that almost all of the incoming energy can be recovered when discharging.
In addition, it comes with a 10-year warranty with manufacturer's support.
Thermal performance and safety
The V5α PLUS battery has a typical operating temperature range between -10 °C and +50 °C for safe discharging and charging.
It also has an integrated heating system that allows the battery to operate efficiently even in cold climates, keeping the internal temperature in optimal operating ranges without the need for external accessories.
Intelligent monitoring and functions
The V5α PLUS battery module features remote control and data visualisation as it allows real-time monitoring of charge status, alarms, performance history and updating of the BMS software via WEB/APP.
In addition, it has an alarm and fault notification system that helps keep the battery safe and efficient.
Connectivity and scalability
The Pytes V5α PLUS has CAN and RS-485 communications protocols, making it easy to connect to inverters, controllers and intelligent monitoring systems.
In terms of scalability, this battery allows several units to be connected in parallel to expand the capacity of the system.
In advanced configurations, dozens of modules can be used to store 430 kWh.
Pytes V5α PLUS Lithium Battery Compatibility - 110402100134
This battery works with a wide range of inverters and solar controllers on the market, offering integration flexibility.
The inverters most compatible with this Pytes battery are Victron Energy, SMA, Goodwe, Growatt, Sol-Ark and Voltronic Power.
But it is compatible with many more brands.
Advantages of the Pytes V5α PLUS battery compared to V5
The LiFePO4 V5α PLUS LiFePO4 Battery is a smart evolution of the V5 model, with the following advantages:
- Increased comprehensive security
- Remote monitoring and maintenance functions
- Improved performance in electrical peaks
- More complex or demanding installations
- Reliability in colder climates.
If your use goes beyond a simple plug & play battery and you want to maximise safety, control and scalability, the V5α PLUS offers clear advantages over the V5.
| Feature | V5α PLUS | V5 |
|---|---|---|
| BMS protection | ✔️ Advanced | ✔️ Standard |
| Emergency disconnection | ✔️ | ❌ |
| Aerosol suppression | ✔️ | ❌ |
| WEB/APP monitoring | ✔️ Integrated | Optional |
| Internal heating | Improved | Basic |
| Peak discharge | Up to ~200 A | 🔋 ~180 A |
| Scalability | 💼 Major | 📈 Good |
| Mechanical robustness | ✅ Major | ✅ Good |
Technical Specifications Lithium Battery 51.2V/5.12kWh LiFePO4 Pytes V5α PLUS - 110402100134
| Features | Value / Detail |
|---|---|
| Model | Pytes V5°α PLUS |
| Cell chemistry | LiFePO₄ (lithium iron phosphate) |
| Nominal voltage | 51,2 V |
| Voltage range | 47.5 V - 57.6 V |
| Rated capacity | 100 Ah |
| Nominal energy | 5,12 kWh |
| Recommended charging/discharging current | 75 A |
| Maximum continuous charge/discharge current | 75 A (at normal temperature) |
| Maximum peak current | 101 A - 120 A (3 min) / 121 A - 200 A (15 sec) |
| Integrated Breaker | DC 125 V / 125 A |
| Communication / Protocols | CAN / RS485 |
| Power terminals | Amphenol SurLok Plus 8.0 mm |
| Round-Trip Efficiency | ≥ 95 % |
| Life cycle | ≥ 6000 cycles at 90 % DOD |
| Design life | > 10 years (up to ~20 years) |
| Certifications | UL9540 Ed.2, UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3 |
| Dimensions (L×W×H) | 484 × 578,2 × 140 mm |
| Weight | 45,34 kg |
| Ambient operating temperature | -10 °C - 50 °C |
| Heating system (pad) | Yes, integrated option for cold operation (-18 °C to 10 °C) |
| Assembly | Wall / floor / rack (3.2U) |
| Parallel scalability | Up to 16 units (81,92 kWh) per group |
Pytes V5α PLUS battery technical information
Weight and dimensions
| Weight | 45,34 kg |
|---|---|
| Dimensions | 48,4 × 57,82 × 14 cm |
