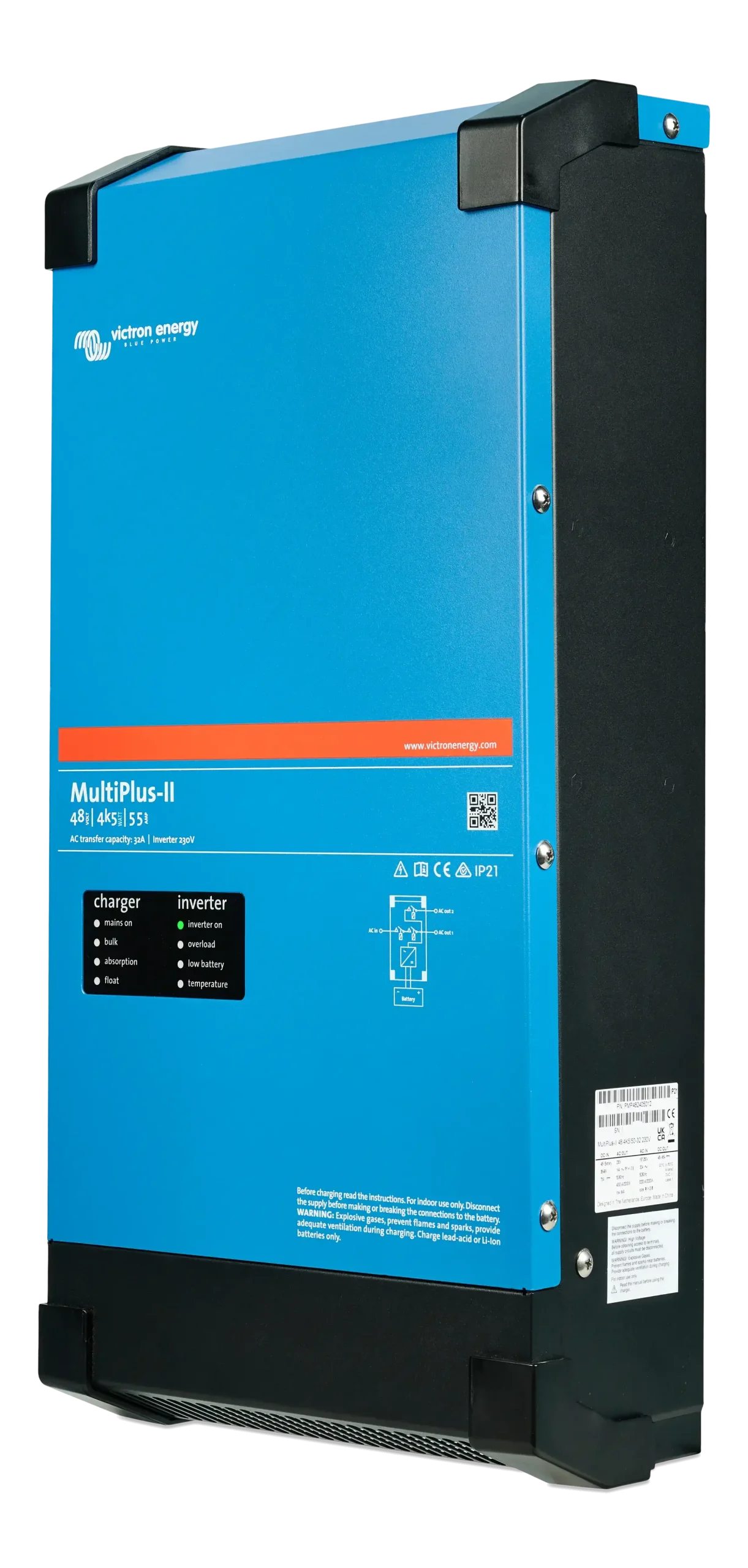

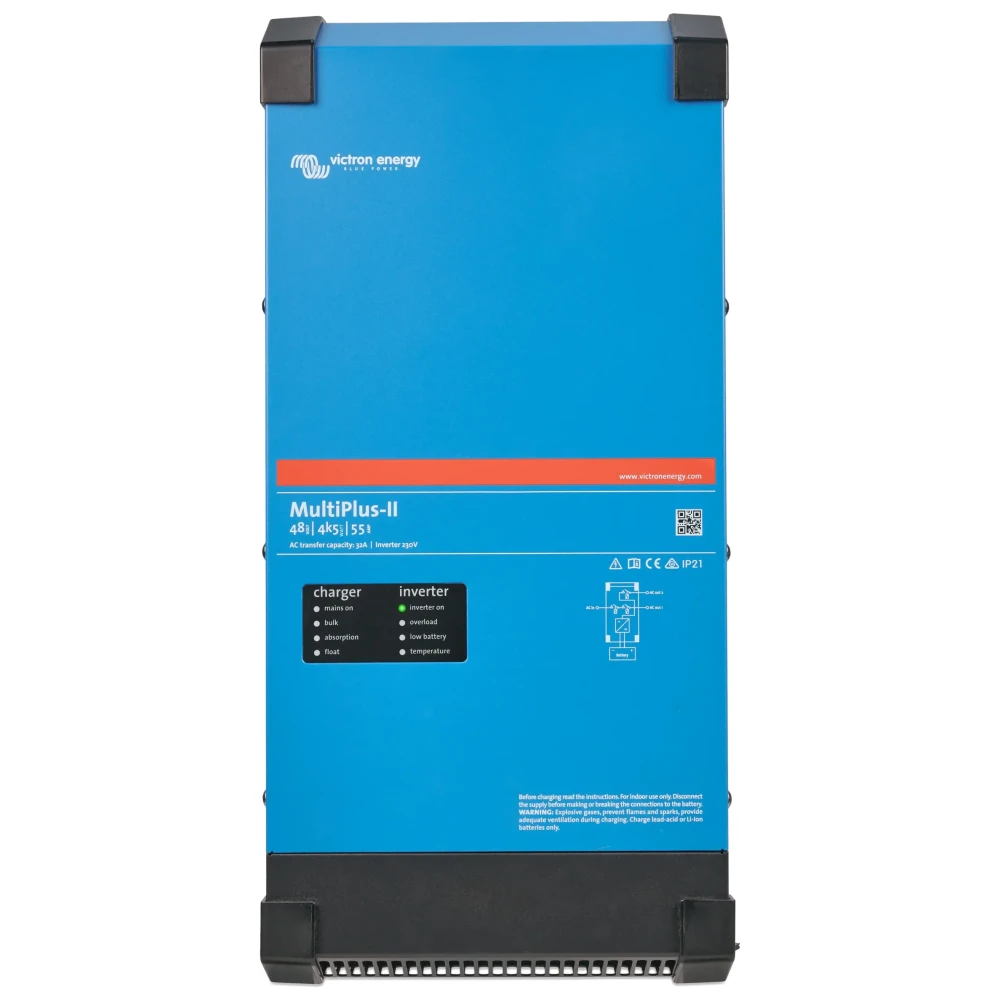

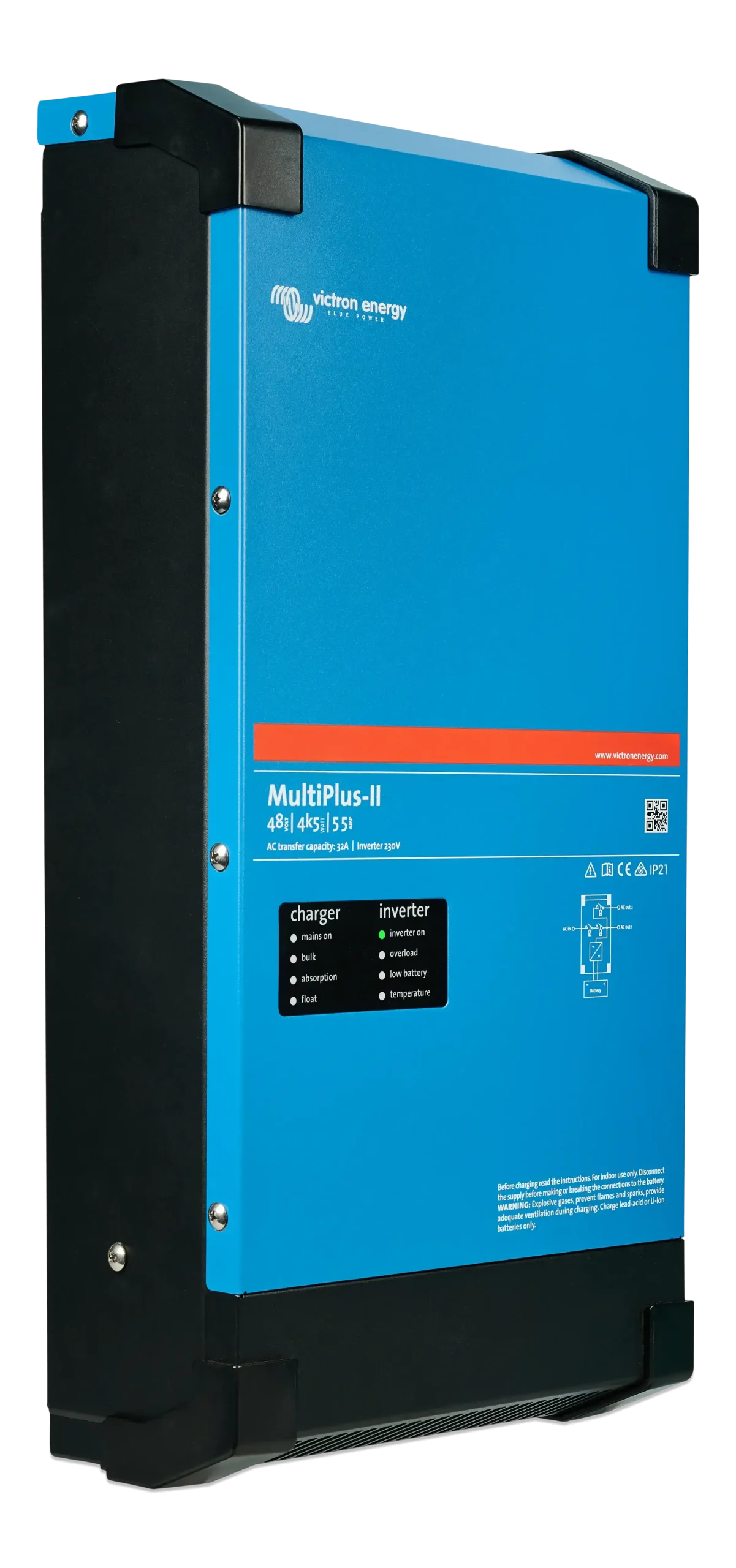

Inverter Charger Victron MultiPlus II 48/4500VA 48V 55A-32A - PMP482405012

The Victron MultiPlus II 48/4500VA 48V 55-32A Inverter Charger - PMP482405012 combines three functions in one device: pure wave inverter, battery charger and automatic switch. Its compact and robust design makes it ideal for a wide variety of applications.
It is designed to provide reliable and continuous power, making it perfect for hybrid solar systems, home backup, commercial, recreational vehicle and industrial uses that require high efficiency and quality.
Thanks to its functions PowerControl y PowerAssistThe energy management system efficiently manages energy and avoids overloads in generators or in the electrical grid. In addition, it allows parallel configurations and three-phase systems, adapting to larger scale installations.

Main features of the Inverter Charger Victron MultiPlus II 48/4500VA 48V 55-32A - PMP482405012

Superior power and performance

This model offers a continuous power of 4500 VA (4000 W) with pure sine wave output, guaranteeing stable supply for all types of loads. It is even safe for sensitive equipment such as computers or household appliances.
Your peak power reaches 7kW, making it easy to handle start-up peaks in pumps, motors or compressors without compromising system stability.

Ultra-fast UPS-type switching

Its automatic switchover in less than 20 millisecondss ensures that your critical devices do not suffer interruptions when switching between mains and battery power, functioning like a professional UPS system.

PowerAssist and PowerControl technology

PowerAssist allows the battery to provide additional power at times of high demand, avoiding overloads on generators or the grid.
On the other hand, PowerControl regulates the input current so that it never exceeds the capacity of the generator or the grid, ensuring efficient and safe use.

Intelligent and adaptable charger

With a maximum load current of 55 AmpsThe integrated battery charger manages charging in four stages (bulk, absorption, float and storage), optimising the lifetime of lead-acid, AGM, GEL and lithium batteries.
Plus, its temperature sensor automatically adjusts the charging voltage according to environmental conditions to protect your batteries.

Scalability and flexibility for all types of installations

Supports the parallel connection of up to 6 units to increase power and load capacity, as well as configuration in three-phase systems, ideal for commercial and industrial applications requiring increased power and redundancy.

Independent AC outputs

It incorporates two separate AC outlets: one switched for critical loads with automatic back-up, and one for non-essential loads that only run when mains power is available, optimising energy consumption and management.

Advanced remote monitoring and control

Compatible with Victron GX devices and the VRM platform, it allows you to monitor and control your system from anywhere via the internet. This way, you can optimise performance and detect possible incidents in real time, directly from your computer or mobile phone.

Energy efficiency and savings

With a maximum efficiency of 95 % and a consumption in standby mode from only 13 WWith the MultiPlus II, this MultiPlus II guarantees economical operation that maximises the autonomy of your batteries and reduces energy consumption.

Robustness and security

It is designed to operate over a wide temperature range: from -40 °C to +65 °C.
It includes active ventilation and overload, short-circuit and over-temperature protection, ensuring a long service life even in harsh environments.

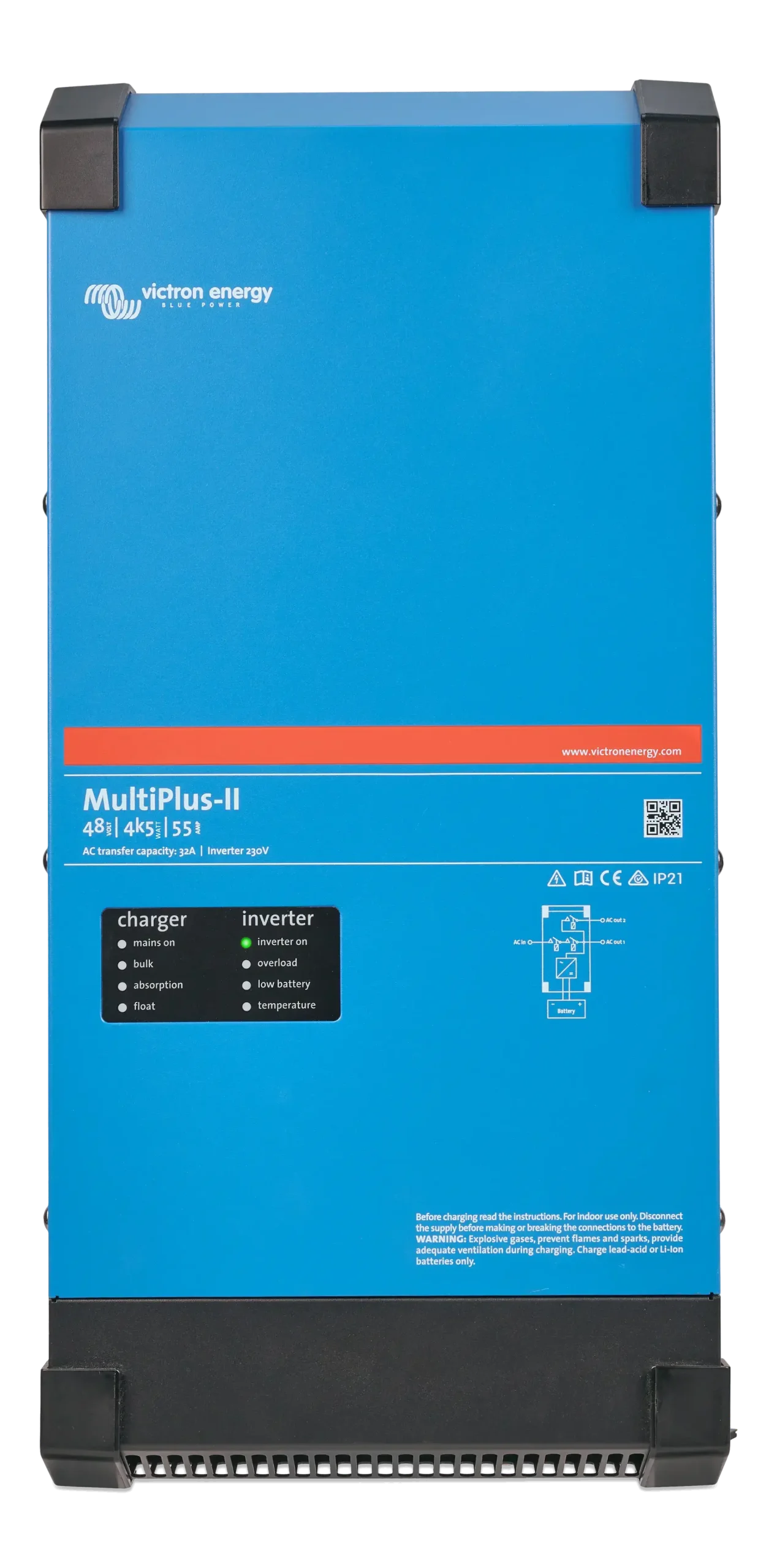

Inverter Charger Victron MultiPlus II 48/4500VA 48V 55-32A - PMP482405012
