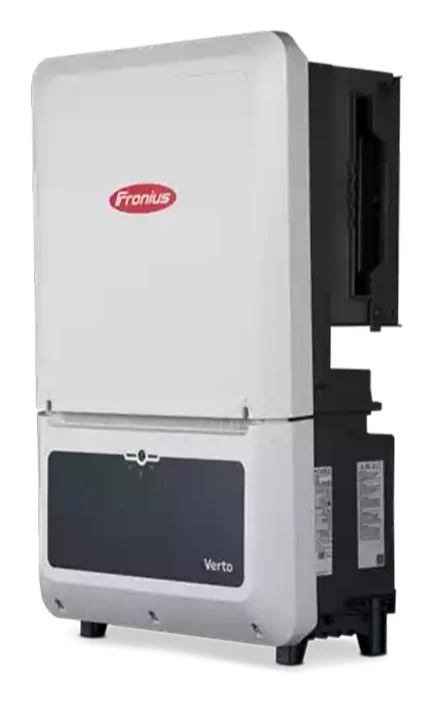

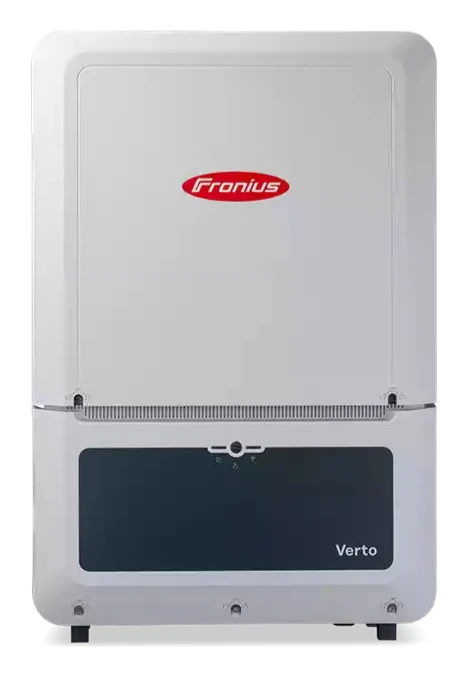

Fronius Verto 30.0 Plus Three-Phase Hybrid Inverter – 4,210,458

The Fronius Verto 30.0 Plus is a 29.9 kW three-phase hybrid inverter for commercial and industrial photovoltaic installations, equipped as standard for high-voltage (HV) batteries and with a three-phase backup option. Its high-current Multi-MPPT architecture and wide operating voltage range make it a top solution for complex roofs and future expansions, maximising self-consumption and energy independence.

Key advantages of the Fronius Verto Plus hybrid inverter

Three-phase full backup

When combined with a battery installation, the Fronius Verto Plus can provide full three-phase backup for the entire building, not just for isolated critical loads. It is equipped to handle demanding consumption such as heat pumps, refrigeration, ventilation or industrial machinery, maintaining electrical continuity in the event of grid outages. In environments where downtime is not an option, it can sustain a stable and reliable supply.

Important: to enable the Full Backup function, additional external network switching components (box/switching elements) are required. Consult the installation manual for further information, assembly diagrams and compatibility details.

Maximum PV design flexibility

The Verto Plus offers total flexibility thanks to:

• Three independent high-intensity MPP Trackers, ideal for multiple orientations, different inclinations, or unbalanced strings.
• Wide voltage range, which facilitates dimensioning in complex industrial roofs.
  It also incorporates the Dynamic Peak Manager algorithm, which optimises production even in partial shade, without relying on external optimisers.

Maximum security (electrical and data)

Its basic configuration includes:

• Integrated surge protection device (SPD)
• Arc Fault Circuit Interrupter – Fronius Arc Guard, active detection of electric arcs.

This means maximum safety standards without adding extra components.
And at the digital level, Fronius protects monitoring and data with a certified cybersecurity system and servers/cloud in Europe, which is important for industrial customers who want to avoid compliance issues.

Technical data for the Verto 30.0 Plus inverter

• Nominal AC power: 29.9 kW
• Network: Three-phase 400 V
• Number of MPPT: 3
• Inputs per MPPT: 2 (up to 6 strings)
• Max. current usable by MPPT: 28 A
• DC voltage range: 150 – 1,000 V
• Usable MPP range: 150–870 V
• MPP range at full power: 240–870 V
• Maximum usable PV power: up to 30 kWp (DC) with typical industrial oversizing
• Degree of protection: IP66 (outdoor installation)
• Dimensions: 86.5 x 57.4 x 27.9 cm
• Weight: 43.0 kg

Recommended applications

30 kW three-phase hybrid inverter ideal for:

• Industrial buildings and SMEs with high daytime/night-time demand.
• Agriculture and pumping where three-phase backup prevents downtime.
• Residential blocks and collective self-consumption with HV batteries.
• Projects that want self-consumption + storage + backup without redesigning the system in two years.
