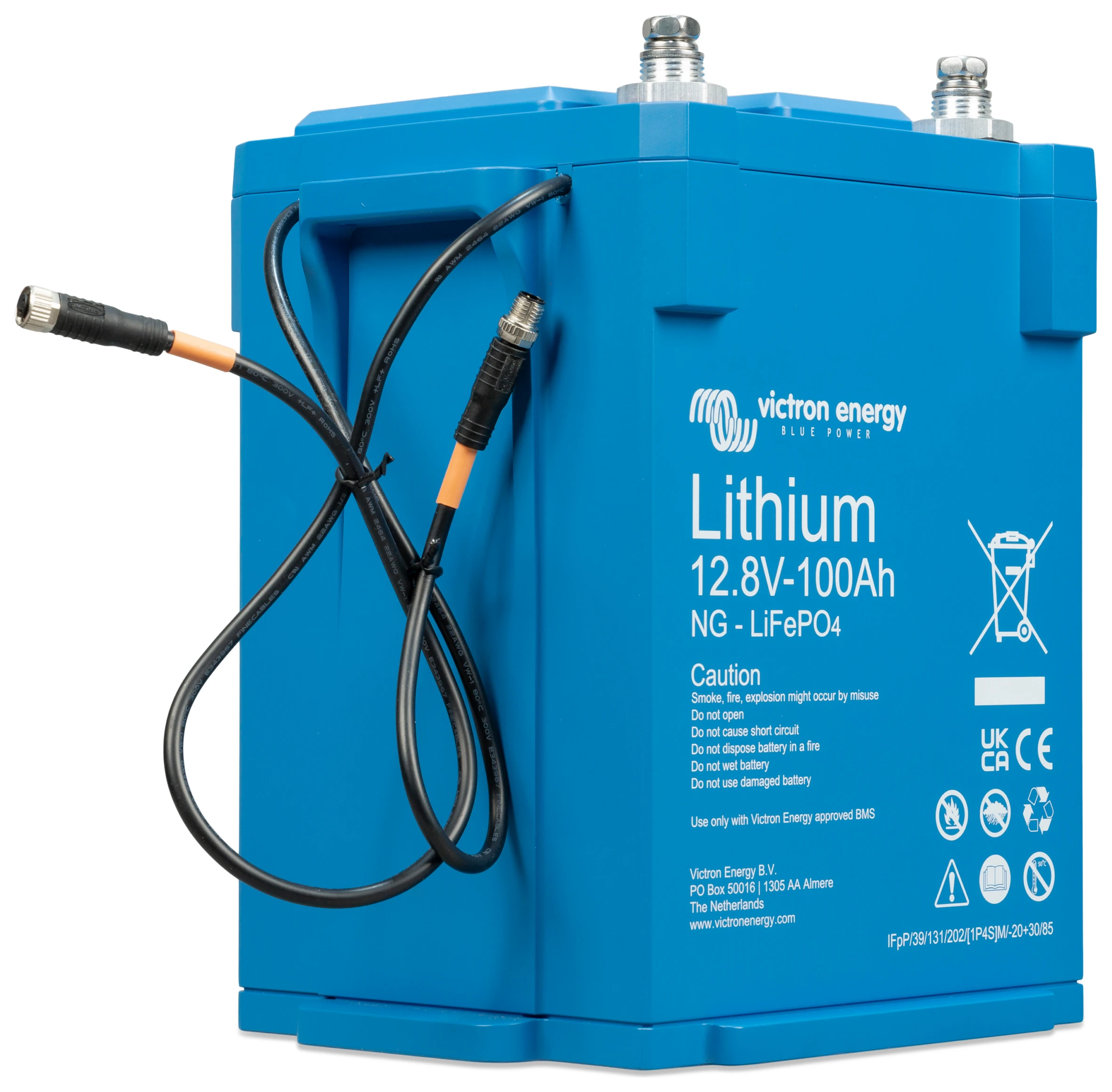

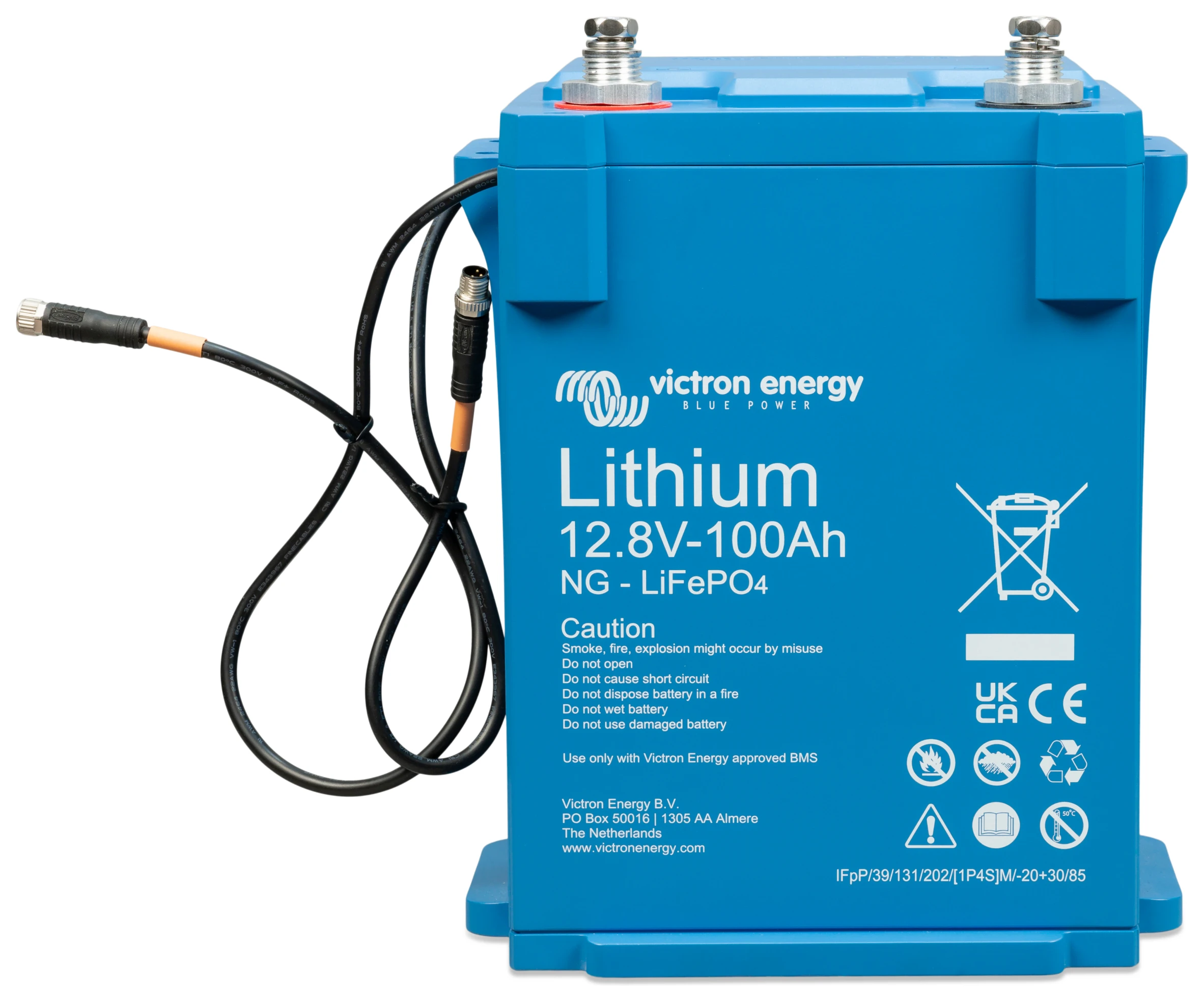

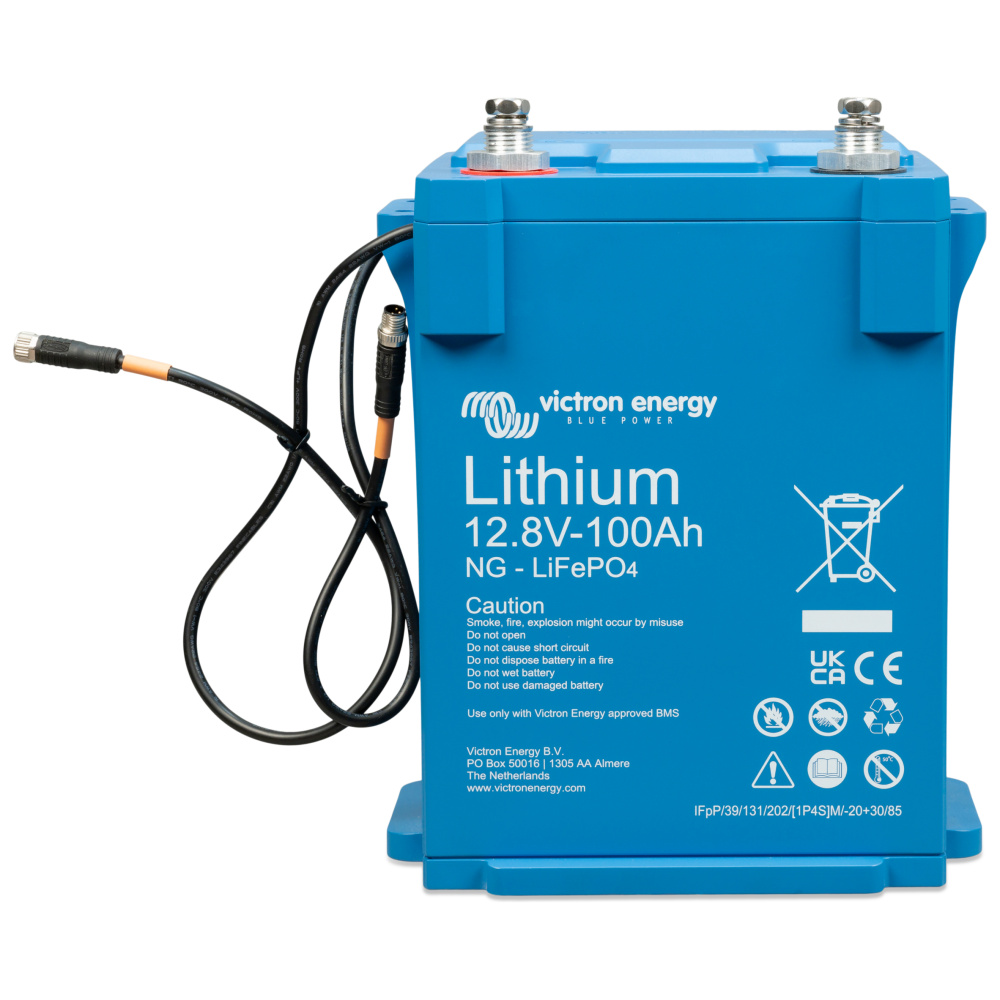

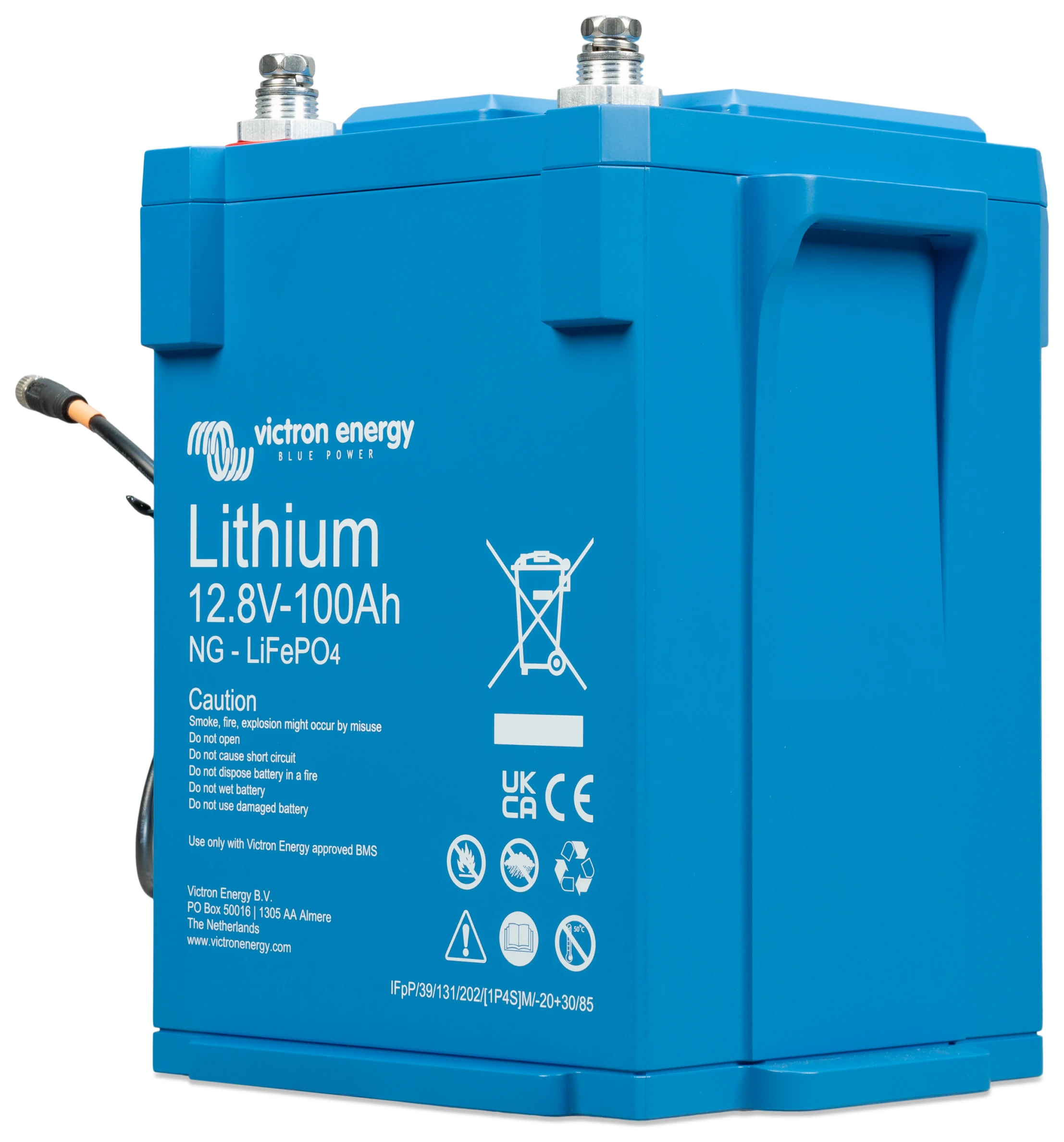

The Victron LiFePO4 12,8V 100Ah NG lithium battery is a lithium iron phosphate battery, in addition to the LiFePO4 battery. has an integrated shunt and has IP65 protection. It can be connected in series, in parallel and in series/parallel combination, up to a maximum of 50 batteries. The maximum energy storage for a system consisting of 50 batteries is 64kWh.

The battery data (battery voltage, current and temperature) recorded by the shunt is transmitted to the NG BMS and evaluated to calculate certain parameters and set alarms. This data can be monitored via the VictronConnect App or with the use of a GX device and the Victron VRM portal.

This lithium battery belongs to Victron's NG range, which also consists of 25.6V and 51.2V batteries of different capacities.

Specifications for Victron Battery 12,8V 100Ah NG - BAT512110620

• Rated voltage: 12,8 V
• Rated capacity at 25 °C: 100 Ah
• Rated energy at 25 °C: 1280 Wh
• Loss of capacity: <1 % per 100 cycles, at 25 °C, with a depth of discharge of 100 % of usable capacity.
• Energy loss: <1 % per 100 cycles, at 25 °C, with a depth of discharge of 100 % of usable capacity.
• Full cycle efficiency: 92 %
• Battery connections: Screws M8 (For connecting cables with 8mm round cable lug)
• Cycle life (capacity ≥ 80 % of nominal):
  • 80 % discharge: 2500 cycles
  • 70 % discharge: 3000 cycles
  • 50 % discharge: 5000 cycles
• Internal self-discharge: less than 3 % per month at 25 °C temperature.
• Dimensions: 235 x 197 x 160 mm
• Weight: 9 kg

Discharge capacity

• Maximum continuous discharge current: 100A (1C)
• Maximum discharge current per 10s intervals: 200 A (2C)
• Voltage at the end of the discharge: 11.2 V (Minimum battery voltage).
• Internal resistance: 2 mΩ

Carrying capacity

• Charging voltage: Between 14.00V and 14.40V
• Floating tension: 13,5 V
• Maximum continuous load current: 100 A (1C)
• Maximum load current per 10s intervals: 200 A (2C)

Working conditions of the Victron battery 12,8V 100Ah NG

• Working temperature:
  • Discharge: From -20 °C to +50 °C
  • Load: +5 °C to +50 °C
• Storage temperature: From -45 °C to +70 °C
• Humidity (non-condensing): Max. 95 %
• Protection class: IP65

General aspects to be taken into account

• Specific BMS for this new NG battery series: A BMS compatible with the new NG series must be used, such as the Lynx Smart BMS NG 500 A / Lynx Smart BMS NG 1000 A (with M10 busbars). These NG BMSs must be purchased separately from the battery.
• Separate measurements of each cell: Voltages and temperatures of each cell as well as battery current.
• Battery BMS interface: Male + female cable with M8 circular connector with high-speed digital communication and 50 cm length
• Bluetooth: The new NG batteries do not have bluetooth as it is now built in to the NG series BMS.
• Maximum number of batteries per BMS NG: 50 units (Total 384 kWh)
• Battery firmware updates: The battery firmware is automatically updated by the BMS NG.
• Repairable: Yes (cover can be removed with screws)
• Safety standards:
  • Cells: UL1973, UL9540A, IEC62619

Installation and assembly of the Victron LiFePO4 battery 12,8V 100Ah NG

The following image shows the dimensions of the Victron 12,8V 100Ah NG battery:

Victron 12,8V 100Ah NG battery mount:

• It can be mounted vertically or on its side, but never with the terminals facing downwards.
  • There are two optionsis for fixation: with straps or mounting brackets.
  • Mounting brackets ensure that the battery is securely fastened and cannot slip or tip over.
• It can only be installed indoors and in a dry place.
• Due to its weight, the use of suitable handling equipment is recommended for transport.
• A space of 2 cm should be left on all four sides of the battery to allow for ventilation (the battery heats up during charging and discharging).
• Pay special attention to polarity when connecting the terminals. The screws are tightened with a torque of 10 Nm, using an insulated tool that fits the size of the screw head. The picture below shows how the wires should be connected:

• The installation of a BMS NG, Lynx Smart BMS NG 500 A/ Lynx Smart BMS NG 1000 A is mandatory (must be purchased separately).
  • The BMS automatically manages all battery parameters. It detects the system voltage and the number of batteries connected in series, in parallel and in series/parallel combination.
• To monitor the system you need the BMS NG and the VictronConnect App or a GX device and the VictronConnect App. Victron VRM portal. You can view lithium battery parameters such as cell status and voltages and current and temperatures, all in real time.

Connection of the BMS NG

• Each NG battery has two cables to communicate with the NG BMS. One has a three-pole male connector and the other a three-pole female connector. Depending on the battery model, the BMS NG cables can be located on the same side or on both sides of the battery.
  • These cables are 50cm long and can be extended with BMS NG extension cables.
  • With a single NG battery, the cables are connected directly to the NG BMS.
  • In multi-battery systems, all BMS cables are daisy-chained and the first and last cables are connected to the BMS NG.

Section of the cables and fuses necessary to install the 12,8V 100Ah NG lithium battery.

Batteries can produce very high currents, so all electrical connections to the battery must have a fuse with a rating suitable for the size of the battery cable. And the battery cables must be sized to carry the maximum current expected in the system.

For more information on how to dimension, see the guide "Wired without limits". You can also install the Victron Toolkit App to calculate the cable cross-section you need for your installation.

Cable recommendations to be used for a distance of 2m between battery and inverter:

• For this 12V 100A/h lithium battery: minimum cross-section 25mm.

How to fit fuses

Serial connection:

• A maximum of four 12.8 V batteries or two 25.6 V batteries can be connected in series. This gives a total of 51.2 V.
• Each battery must be fully charged and individually balanced.
• The negative is connected to the positive of the next lithium battery.
• The fuse is placed in the positive part of the chain.

Parallel connection:

• A total of 50 lithium batteries can be connected.
• The fuse of each lithium battery is placed on the positive side.
• The cables of the DC system are connected diagonally.
• The cable cross-section of the system shall be equal to the cable cross-section of the chain multiplied by the number of chains.
  • There are as many strings as the number of batteries in parallel.
• The fuse is placed in the main positive cable leading to the battery bank.

Serial/parallel combination connection:

• A total of 50 lithium batteries can be connected.
• Each battery must be fully charged and individually balanced.
• The fuse of each battery is placed on the positive side.
• Do not interconnect the midpoints or connect anything else to the midpoints.
• The system cables are connected diagonally.
• The cable cross-section of the system shall be equal to the cable cross-section of the chain multiplied by the number of chains.
• The fuse is placed in the main positive cable leading to the battery bank.

Charger settings

• • Absorption voltage: 14.2 V.
  • Absorption time: 2 hours.
  • Float voltage: 13.5 V.
  • More information in the section "First charge of the lithium battery".

Once the installation has been completed, all connections and wiring of the system must be checked. A checklist can be found in the manual (link at the end of the sheet).

Example of a Victron NG battery installation

The picture below shows an example of a typical system installation of an NG battery and an NG BMS:

This installation consists of:

• Smart Solar MPPT charge controller.
• Inverter Multiplus II.
• Cerbo GX MK2 monitoring.
• Victron NG lithium battery.
• Lynx Smart BMS NG 500 A.
• Lynx Class-T power in (M10).
• Lynx Distributor (M10).
• VictronConnect App.
• One charger and one charge.
• Solar panels.

List of materials required for the installation of the Victron 12,8V 100Ah NG battery

• As mentioned in the section "Installation and assembly", the BMS NG is mandatory:
  • Lynx Smart BMS 500 NG (M10) Victron - LYN034160310
  • Lynx Smart BMS 1000 NG (M10) Victron - LYN034170310
  • The battery is equipped with 50 cm long BMS cables, 1m, 3m or 5m extension cables can be purchased if required: Victron cable with 3-pole male/female M8 circular connector 3m - ASS030560300
• Monitoring can be done with the VictronConnect App  via the Bluetooth connection of the BMS NG or by installing a GX device: Victron Cerbo GX MK2 Monitoring - BPP900451100 and with the Victron VRM portal.
• Optionally, a display can be added to the installation: Monitoring Victron GX Touch 50 - BPP900455050.
• The advantage of having a Cerbo GX installed is that the system can be monitored from anywhere at any time via the VRM portal. The option of using the VictronConnect App is limited to the Bluetooth range of the BMS NG and the app must be open, as it does not run in the background.

First lithium battery charge

Lithium batteries come from the factory with a charge of approximately 50%. But not all batteries have the same state of charge at the time of installation due to conditions during transport and storage.

If you want to connect batteries in series, you must first charge them separately with a charger or a dedicated inverter/charger with a BMS, as new batteries can have large differences in state of charge between them. Differences in state of charge between batteries are not the same as imbalances between the cell voltages of a battery. This is because the cell balancing circuits of one battery cannot affect the cells of another battery.

When connected in parallel, this battery bank can be charged as a unit.

Loading process:

• It is necessary to configure the charging profile in the charger with the recommended settings:
  • It must be a 12V charger and must have a profile for charging LiFePO4 batteries or the possibility to make a custom profile.
  • Absorption voltage: 14.2 V (for a 12.8 V lithium battery).
  • Absorption time:
    • Minimum 2 hours per month for systems with little operation, such as auxiliary applications or UPS.
    • Between 4 and 8 hours per month for systems with high usage (stand-alone or ESS type).
  • Floating tension: 13.5 V (for a 12.8 V lithium battery).
  • Values that not all chargers have:
    • Storage mode: same value as the buoyancy stress.
    • Initial charging voltage: same value as the absorption voltage.
  • No temperature compensated charging is required for lithium batteries. Set to: 0mV/°C.
  • A charging current of 0.5C is recommended. In the case of a 100 Ah lithium battery, the charging current would be 50 A.
• The battery, the BMS NG and the charger must communicate with each other. To check this, disconnect one of the cables from the battery to the BMS NG and see if the charger switches off. When you reconnect the cable, the charger should turn on.
• Turn on the charger and check that it charges the battery.
  • If, during charging, there is any imbalance between the battery cells, it is possible that the BMS NG will repeatedly switch the charger off and on. This pattern will repeat itself until
    that the cells are balanced and the charger will not switch off until the battery is fully charged.
• The battery is fully charged when the battery charger has reached the float state and the cells are in the "balanced" state. If the state of the cells is "unknown" or "unbalanced", the battery charger will restart several times until it is "balanced".

Battery management system (BMS NG)

When the firmware of the BMS NG is updated, the firmware of the battery is automatically updated as well. This is done via the VictronConnect App or via the VRM Portal. The App must be kept up to date so that the latest firmware version is available.

Functions performed by the BMS NG:

The BMS NG can control loads and chargers in two ways:

• Sending an electrical or digital on/off signal to the charger or load.
• By physically connecting or disconnecting a load or charging source from the battery. Directly or by using a BatteryProtect or a Cyrix Li-ion relay.

The Lynx Smart BMS NG is used in systems containing DC loads and AC loads via inverters or inverter/chargers, for example in boats or caravans. This BMS NG is equipped with a contactor that disconnects the DC system, a "load disconnect", a "load process disconnect", a "pre-alarm" contact and a battery monitor. It can also be connected to a GX device and Victron Energy compatible control equipment via DVCC.

• In case of low cell voltage, the BMS NG will send a "load disconnect" signal to switch off the load(s).
• Before shutting down a load, it will send a pre-alarm signal indicating impending low cell voltage.
• In case of high cell voltage or low or high battery temperature, the BMS NG will send a "load disconnect" signal to switch off the charger(s).
• If the batteries are further discharged (or overcharged), the contactor will open, effectively disconnecting the DC system to protect the batteries.

Operating conditions

• The discharge must be carried out in a temperature range of -20 °C to +50 °C:
  • If the temperature is 0°C or below: the discharge current must be reduced to 0.5C.
  • If the temperature is higher than 35 °C: the discharge current must also be reduced.
• Charging must be done in a temperature range of +5°C to +50 °C:
  • If the temperature is less than or equal to 15 °C: the charging current must be reduced to a maximum of 0.3C.
  • If the temperature is higher than 35 °C: the load current must also be reduced.

Victron NG LiFePO4 Battery Maintenance

• Avoid total discharge.
• Prevent system shutdown when the BMS NG pre-alarm is activated.
• If the BMS NG deactivates the loads, recharge the batteries immediately. The batteries should spend as little time as possible in a deeply discharged state.
• The charging process should not be interrupted until the state is "balanced" for each battery in the system.
• If the system is to be unattended for a period of time, leave the batteries charged or make sure they are (almost) full, and disconnect the DC system from the battery.

Battery storage

• Avoid direct sunlight, high temperatures and high humidity.
• Store in a cool (optimum temperature +25 ±5°C) and ventilated place.
• Maintain an adequate distance between the walls and the battery to ensure proper ventilation.
• Store the battery in plastic or non-conductive trays.
• In case of long-term storage:
  • Do not store upside down.
  • Charge the battery at 40-60 % initially and check the open circuit voltage monthly.
  • Charge immediately if the voltage drops below 3.0 V/cell.
  • Charge the battery at least once every six months.

FAQs for the Victron LiFePO4 Lithium Battery 12,8V 100Ah NG

- How many Victron 12,8V 100Ah NG batteries can be connected?

The maximum number of batteries allowed in a system is 50 (per BMS NG). They can be connected in series, in parallel or in series/parallel combination. The maximum energy storage with 50 Victron 12.8V 100Ah NG batteries connected is 64 kWh.

- How to connect the Victron 12,8V 100Ah NG lithium battery?

See section "Assembly of LiFePO4 battery Victron 12,8V 100Ah NG".

- What protection does the Victron 12,8V 100Ah NG LiFePO4 battery have?

This battery has IP65 protection. It is dust-tight and can withstand low pressure water jets.
