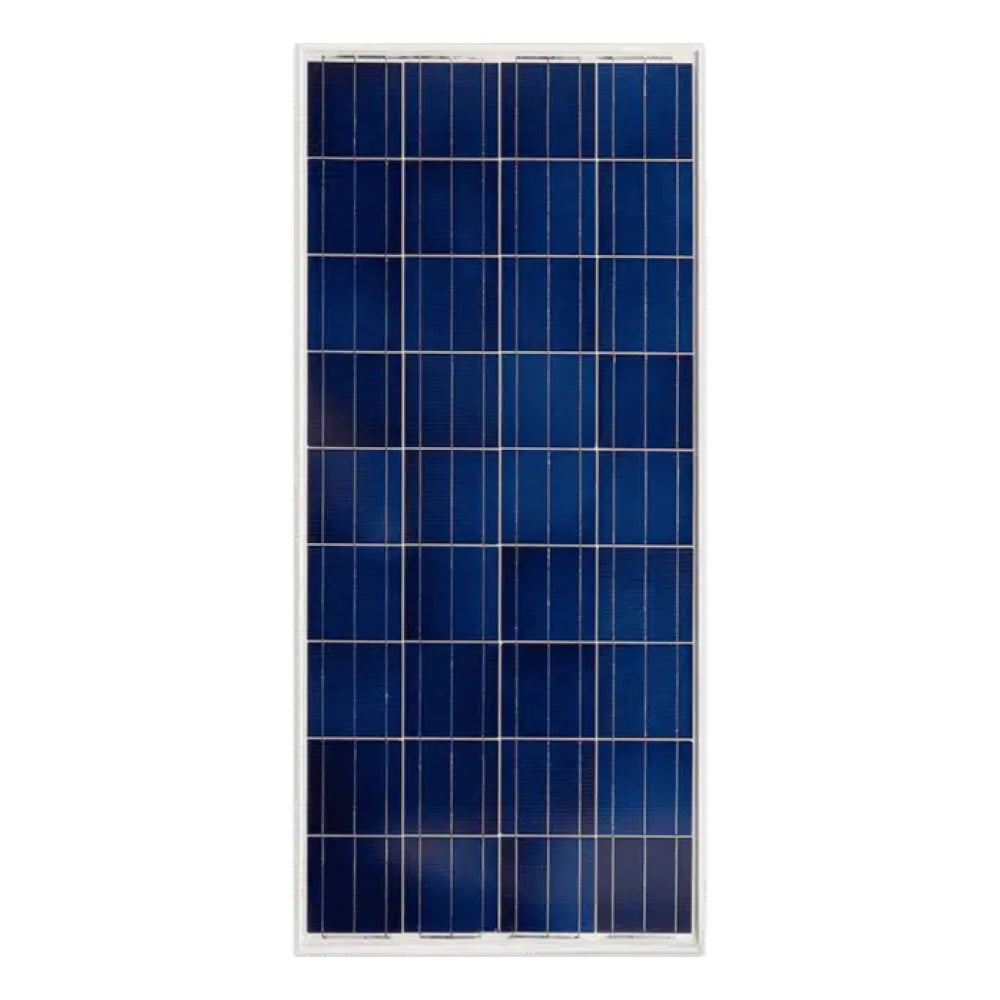

Victron BlueSolar 95W-12V monocrystalline 4c series solar panel - SPM040953003

Victron BlueSolar 95W-12V monocrystalline 4c series solar panel - SPM040953003

This monocrystalline is a compact 95 W solar panel, specially designed for 12 V systems.

This panel is a BlueSolar and is part of Victron Energy's 4c series, a line of solar panels renowned for their reliability, efficiency under various light conditions and robustness for outdoor use.

Its 95 W output makes it perfect for charging 12 V batteries more quickly, supplying auxiliary loads or complementing solar installations.

The 95 W solar panel is specially designed for boats, caravans, campers and off-grid systems where space is limited and a balance between power, efficiency and durability is required.

Characteristics of the 95W Solar Panel 4c series

Performance

The 95W solar panel has an operating voltage at maximum power of 17.6 V, providing efficient battery charging.

Also, it has an open-circuit voltage of 20.4 V, which ensures that the board performs well and generates power even in low light or less than optimal sunlight conditions.

In addition, its high-performance bypass diodes help to reduce the losses generated by partial shading of the board, thus improving the overall efficiency of the board when some cells are not fully illuminated.

Construction and design

The BlueSolar 95W solar panel is manufactured with materials and processes that ensure its robustness, longevity and resistance to demanding environmental conditions.

The solar panel uses 30 monocrystalline solar cells, which ensure better energy efficiency and higher yields.
This type of cell offers a better response in limited light conditions, maximising energy harvesting.

This plate has a robust anodised aluminium frame, which is highly resistant to corrosion.
This makes it ideal for outdoor and weather exposed installations.

Its front is protected by high transmission tempered glass, which protects the cells from impact, abrasion and adverse weather conditions.

In addition, this board features a sealed, waterproof and dustproof junction box, providing secure connections with 900 mm MC4 connectors.
It protects your electrical connections from moisture and ensures long-term safety and reliability.

Resilience and scalability

This solar panel works perfectly in a wide temperature range, from -40ºC to 85ºC, making it perfect for both hot and cold climates without compromising performance or durability.

It also withstands high surface loads (e.g. snow or wind) and is resistant to hail impacts.

In addition, the maximum system voltage is 1,000 volts, so that several solar panels can be connected in series or in parallel at any time if the system needs to be expanded.

Advantages of the 95 W Solar Panel 4c series

The BlueSolar 95W solar panel, series 4c, has the following advantages:

• High energy efficiency, due to its monocrystalline solar cells, it offers superior performance per unit area.
• Excellent performance even in low light, as it has a high light sensitivity and performs well in low light conditions.
• Less shade losses, because its high-performance bypass diodes help to minimise power losses.
• Wide range of operating temperatures, as it can be used in extreme climates without degrading its performance.
• Robust and durable construction, providing security and protection for outdoors, boats or vehicles.
• Integration and scalability, because it can be integrated into larger installations by connecting it in series or in parallel with other solar panels in systems of up to 1000V.
• Versatile installation, Thanks to its design with the option of MC4 connectors, installation is easy.

Technical Specifications of the Victron BlueSolar 95W-12V Monocrystalline 4c Series Solar Panel - SPM040953003

Technical information about the Victron BlueSolar 95W-12V monocrystalline 4c series solar panel - SPM040953003

95W Solar Panel 4c series technical data sheet

95W Solar Panel 4c series manual
