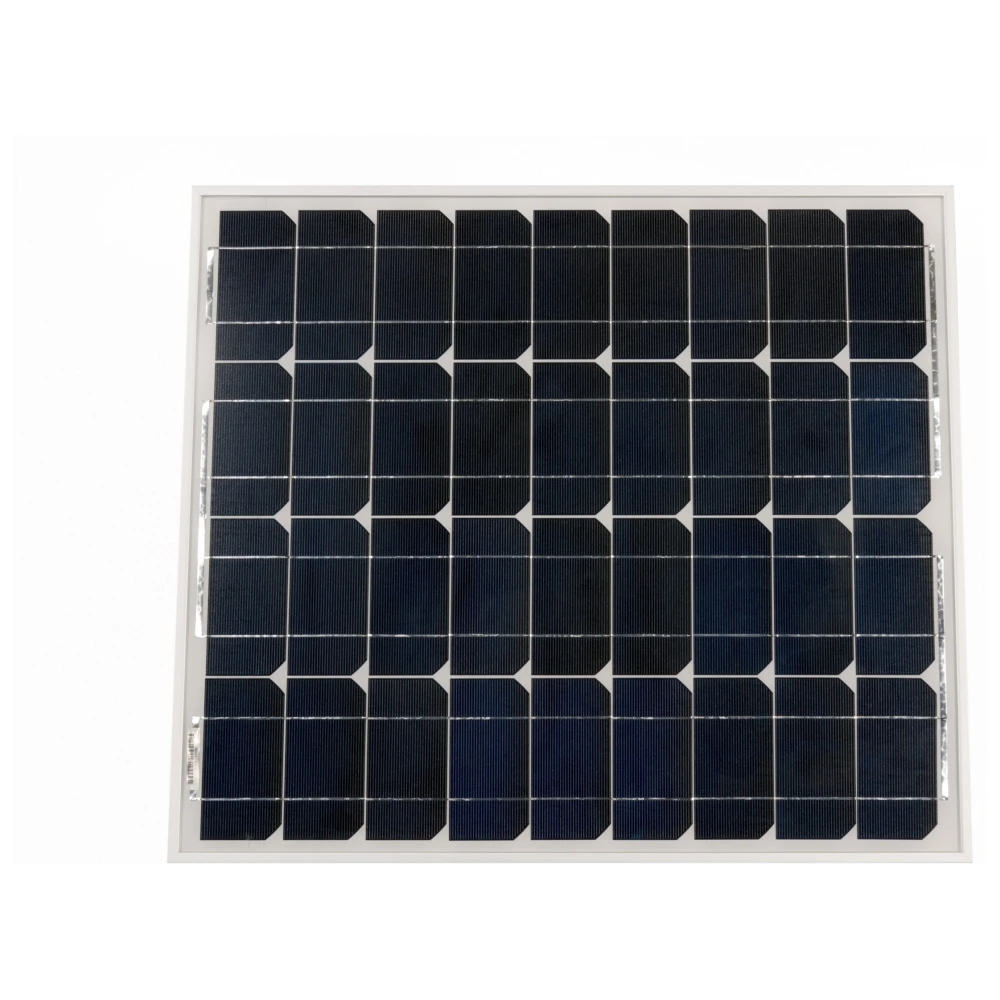

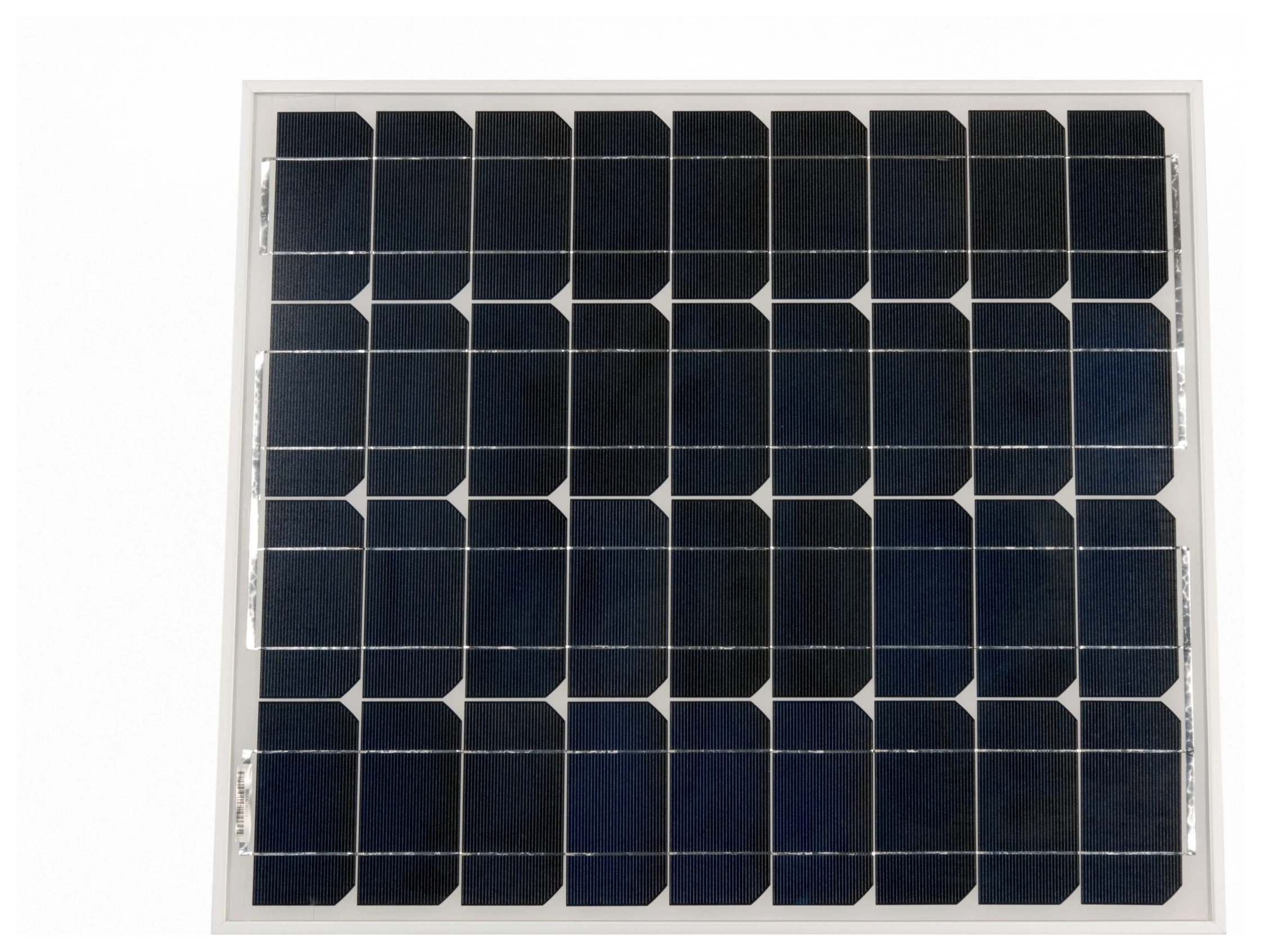

Victron BlueSolar 55W-12V monocrystalline 4c series solar panel - SPM040553603

Victron BlueSolar 55W-12V monocrystalline 4c series solar panel - SPM040553603

The Victron BlueSolar 55W-12V monocrystalline 4c series solar panel is a compact, high-performance photovoltaic module designed for 12V systems.

This panel is part of the BlueSolar series and offers a reliable energy solution.

The 55 W solar panel is specially designed for mobile, marine and off-grid applications where space is limited and a balance between power, efficiency and durability is required.

Features of the 55W Solar Panel 4c series

Performance

This solar panel has an operating voltage at maximum power of 21 V, which makes it ideal for efficient charge control with MPPT controllers.

Also, it has an open-circuit voltage of 24.8 V, which ensures that the board performs well and generates power even in low light or less than optimal sunlight conditions.

In addition, it has a maximum power current of 2.63 A and a short-circuit current of 2.79 A, helping to maintain a constant load in small systems.

High quality construction and design

The BlueSolar 55W solar panel is manufactured with materials and processes that ensure its robustness, longevity and resistance, although it is a light and compact panel.
This plate has:

• 36 High-efficiency monocrystalline cells, The new LEDs, which provide higher performance, efficiency and better response in limited light conditions.
• High-transmission tempered glass, which protects the cells and improves durability against impact, hail and adverse weather conditions.
• Robust and lightweight anodised aluminium frame, The corrosion-resistant, corrosion-resistant, easy to install on frames, ceilings or fixed structures.
• Sealed and waterproof junction box, to protect electrical connections and ensure safety in outdoor environments.
• Integrated bypass diodes, which help to minimise energy losses when parts of the panel are shaded.

Resilience and scalability

This solar panel works perfectly in a wide temperature range, from -40ºC to 85ºC, making it perfect for both hot and cold climates without compromising performance or durability.

In addition, the maximum system voltage is 1,000 volts, so that several solar panels can be connected in series or in parallel at any time if the system needs to be expanded.

Advantages of the 55 Watt Solar Panel 4c series

The BlueSolar 55W solar panel, series 4c, has the following advantages:

• High energy efficiency, due to its monocrystalline solar cells, it offers superior performance per unit area.
• Good performance even in low light, as it has a high light sensitivity and performs well in low light conditions.
• Less shade losses, because its high-performance bypass diodes help to minimise power losses.
• Wide range of operating temperatures, as it can be used in extreme climates without degrading its performance.
• Robust and durable construction, providing security and protection for outdoors, boats or vehicles.
• Integration and scalability, because it can be integrated into larger installations by connecting it in series or in parallel with other solar panels in systems of up to 1000V.

Technical Specifications of the Victron BlueSolar 55W-12V Monocrystalline 4c Series Solar Panel - SPM040553603

Technical information for the Victron BlueSolar 55W-12V Monocrystalline 4c series - SPM040553603

55W Solar Panel 4c series technical data sheet

55W Solar Panel Manual 4c series
