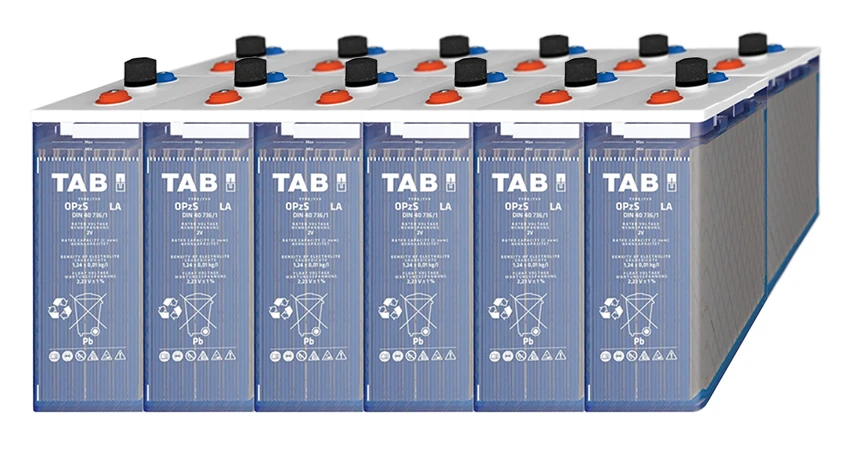

TAB 24V stationary battery – 12x OPzS 200 2V/200Ah

The TAB 24V – 12x OPzS 200 2V/200 stationary battery pack forms a 24V, 215Ah stationary battery bank in C10 using 12 OPzS 2V cells in series, with flooded tubular plates for deep cycling. It is the standard configuration in off-grid photovoltaics when maximum service life and low cost per kWh are required, accepting basic maintenance.

What does the pack include?

The TAB 24V – 12x OPzS 200 2V/200Ah stationary battery pack includes everything you need for simple and safe installation of the battery bank, as well as the necessary items for periodic maintenance.

• 12× TAB OPzS 4OPzS200TB cells (2V each).
• Set of interconnections and output terminals.
• Density meter for checking electrolyte density.
• Ceramic plugs and basic safety features for ventilation and maintenance.

Advantages of TAB OPzS batteries

• Flooded OPzS tubular plate: Designed for slow, deep discharges. Much more resistant to cycling than monobloc designs.
• Long service life: When properly maintained (reasonable DoD + correct load), these batteries have a life expectancy of many years.
• Controllable maintenance: Visible electrolyte level so you can top up with water when needed.
• Recoverable through equalisation: They can recover capacity after mild sulphation due to occasional misuse.
• Better €/kWh useful than gel/AGM in medium-sized and large banks.

These batteries are designed to provide the best reliability at a low cost.

Typical applications of the TAB 24V stationary battery – 12x OPzS 200 2V/200Ah

• Detached dwellings for regular use
• Hybrid systems with generator
• Country houses/farms with long night-time consumption
• Telecommunications, signalling, stationary UPS
• Extensions to existing OPzS banks

Technical specifications of the 24V pack

• Rated voltage: 24V (12 x 2V)
• Rated capacity:
  • C5: 157 Ah
  • C10: 215 Ah

  • C100: 301 Ah
• Charging time up to 92%: up to 6 hours with initial current 1.5*I10, 2.23 V/cell, 50 % C10 discharged
• Estimated lifespan: up to 15–20 years under suitable conditions (moderate temperature, reasonable DoD and correct load).
• Cycles of use: 1,000 – 1,500 cycles (according to the manufacturer's test standard and discharge depth).
• Operating temperature range: –20 °C to +55 °C
• Guarantee: 2 years
• Dimensions per glass:  103 × 206 × 420 millimetres (length × width × height)
• Total weight: ~210 kg

Charging recommendations for 24V OPzS stationary batteries

The service life of OPzS batteries depends on the depth of discharge. For discharges with a depth of 60%, the estimated service life of these batteries would be 1,500 cycles.

• Recommended charging voltages (per cell):
  • Flotation/maintenance: ≈ 2.23–2.25 V/cell (this applies to float charging between 10–30 °C, with temperature correction). 26.8–27.0 V the pack
  • Boost charging / fast recharging: ≈ 2.35–2.40 V/cell (limited time; typically 3–5 hours once this voltage is reached). 28.2–28.8 V the pack
• Depth of discharge: Normally up to 80 %. Discharges exceeding 80 % of DOD or discharges beyond the final discharge voltages should be avoided.

Installation and safety

• Mandatory ventilation in passenger compartment/bench (gas emissions).
• Regular monitoring electrolyte level and density.
• Handling with PPE (gloves, goggles) due to the presence of acid.

These batteries must be connected as follows: always in series to achieve the total system voltage, as in the following example:
