Victron BlueSolar MPPT 150/45 Controller - SCC115045222
184,32€
TAXES INC.
- Equipment without Bluetooth
- Model with Bluetooth: Victron SmartSolar MPPT 150/45 Controller - SCC115045212
- Battery voltage; 12/24/48 V Auto Select
- Load Rated current; 45 A
- Maximum power PV, 12V; 650 W
- Maximum power PV, 24V; 1.300 W
- Maximum power PV, 48V; 2.600 W
Producto disponible para la venta
Finance your purchase with Cetelem
Product information

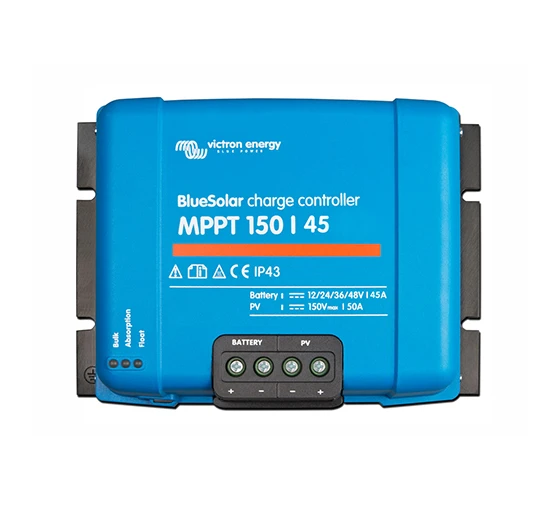

Victron BlueSolar MPPT 150/45 Controller - SCC115045222
With the Victron BlueSolar MPPT 150/45 controller you can enjoy a charging current of up to 45 Ampere and a PV voltage of up to 150 Volt.
The Victron BlueSolar 150/45 MPPT charge controller can charge a battery with a lower nominal voltage from PV panels with a higher nominal voltage of at least +5V.
The BlueSolar controller will automatically adjust the nominal voltage of the battery to 12, 24, 36, or 48 V once connected to the controller.
Ultra Fast Maximum Power Point Tracking (MPPT)
Especially under cloudy skies, when the light intensity changes continuously, an ultrafast MPPT controller will improve energy harvesting by up to 30%, compared to 30% in the case of cloudy skies.
with PWM charge controllers, and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial cloud cover
In case of partial cloud cover, two or more maximum power points (MPPs) may occur on the load voltage curve. Conventional MPPTs usually select a local MPP, which is not necessarily the optimal MPP. SmartSolar's innovative algorithm will always maximise energy harvesting by selecting the optimal MPP.
Exceptional conversion efficiency
Fanless. Maximum efficiency exceeds 98%.
Flexible loading algorithm
A fully programmable charging algorithm (see the software page of the Victron) and eight pre-programmed charging algorithms, which can be selected with a rotary selector.
(see manual for more information).
Extensive electronic protection
Over-temperature protection and power reduction in case of high temperature. Short-circuit and reverse polarity protection on PV panels. PV reverse current protection.
Internal temperature sensor
Compensates the absorption and buoyancy charge voltage, depending on the temperature.
Optional external battery voltage and temperature sensor via Bluetooth
A Smart Battery Sense sensor or BMV-712 Smart battery monitor can be used to communicate battery voltage and temperature to one or more SmartSolar charge controllers.
Fully discharged battery recovery function
It will start charging even if the battery is discharged to zero volts.
It shall reconnect to a fully discharged lithium-ion battery with internal disconnect function.
VE.Direct
For a wired data connection to a Color Control GX, other GX products, PC or other devices.
Remote On/Off
To connect to a VE.BUS BMS, for example.
Programmable relay
It can be programmed (e.g. with a smartphone) to trigger an alarm or other events.
Datasheet Victron BlueSolar MPPT 150/45 Controller - SCC115045222
View Victron BlueSolar MPPT 150/45 Controller data sheet - SCC115045222
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 15 × 20 × 10 cm |
