Circuit breaker 1 Pole 16A 250VDC Projoy - PEBS-H-63 - 17.01PEB0013
6,66€
TAXES INC.
- Polarity-free design, 1P
- Electrical life can reach 1500 times
- Ics≥6KA
- Supported ambient temperature: 30℃ ~+70℃
- Conforms to ROHS and REACH environmental protection regulations.
- TUV, CE, CB, UL, SAA Certification
Product available for sale
Finance your purchase with Cetelem
Details of the Circuit breaker 1 Pole 16A 250VDC Projoy - PEBS-H-63 - 17.01PEB0013

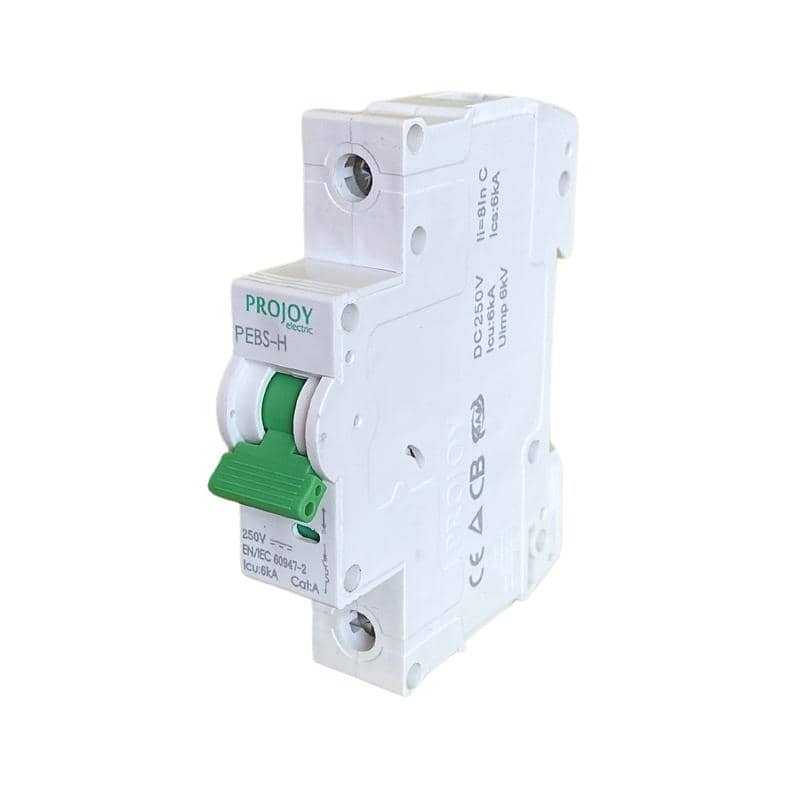

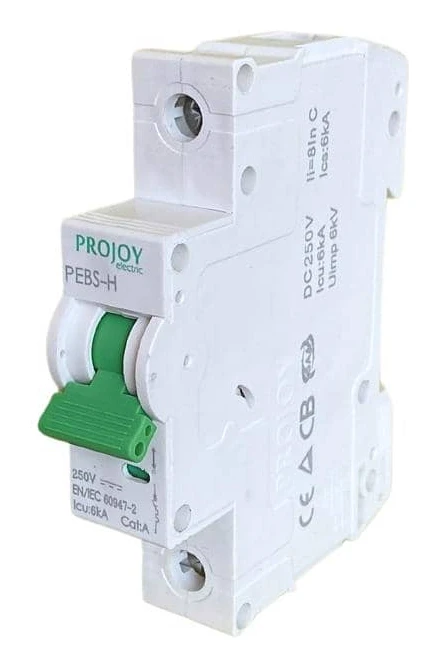

Circuit breaker PEBS-H-63 1P 16A 250VDC Projoy - 17.01PEB0013
Projoy's PEBS-H-63 is a miniature magneto-thermal circuit breaker (MCB) designed to protect direct current (DC) circuits against overloads and short circuits, especially in photovoltaic installations, energy storage and solar systems.
Characteristics of the PEBS-H-63 Projoy circuit breaker
- Rated current: 16A
- Poles: 1P
- Rated voltage: 250VDC
- Insulation voltage: 1000V
- Breaking capacity: 6000A
- Triggering technology: Thermal-magnetic
- Rated impulse voltage: 6kV
- Degree of contamination: 3
- Electrical life: 1000
- Mechanical life: 10000
- Degree of protection: IP40; Wiring port IP20
- Ambient temperature: -30℃ - +70℃
- Storage temperature: -40℃ - +85℃
- Mounting: Designed for 35 mm DIN-rail mounting
- Physical indicators: Usually includes a visible handle for ON/OFF status and a default trigger signal.
- Housing material: Thermoplastic, self-extinguishing, impact and heat resistant.
Technical information of the circuit breaker PEBS-H-63 1P 16A 250VDC Projoy - 17.01PEB0013
Weight and dimensions
| Weight | 0,12 kg |
|---|---|
| Dimensions | 7,4 × 1,76 × 8,4 cm |
