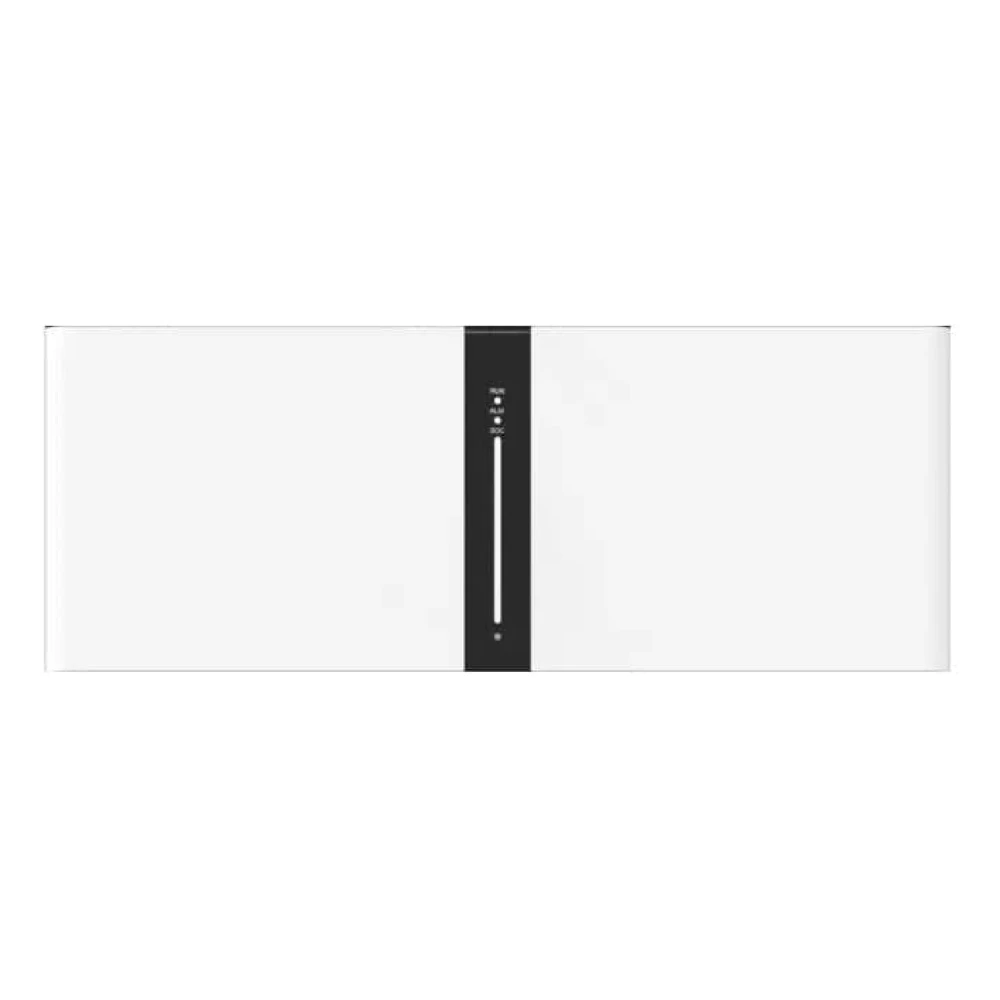

Lithium battery 51.2V/5.12kWh LiFePO4 Pytes Pi LV1 - 110404100008

Lithium battery 51.2V/5.12kWh LiFePO4 Pytes Pi LV1 - 110404100008

The Pi LV1 battery is a compact, robust and scalable energy storage solution. It combines high security, easy installation and scalability. It is designed for both residential and commercial installations. It is ideal for maximising solar self-consumption, ensuring reliable energy backup or designing higher capacity modular systems.

Its LiFePO₄ (lithium iron phosphate) technology offers high safety, long life and thermal stability even in harsh environments.
Its plug-and-play design and compatibility with modern hybrid systems make it attractive. It is ideal for those looking for efficient, reliable storage with the ability to grow over time.

The Pytes Pi LV1 has a nominal voltage of 51.2 V and a capacity of 100 Ah. It provides reliable and efficient energy storage.
The module is scalable, allowing multiple units to be connected in parallel. This increases storage capacity.

Its advanced management system (BMS) ensures safe operation. It monitors cell balance, voltage and temperature. In addition, it offers protection against overloads, over-discharges and short circuits.

Pytes Pi LV1 battery features

Modular and stackable design

The Pi LV1 battery is designed to be modular and stackable, allowing systems from 5.12 kWh to 30.72 kWh to be configured by combining several modules.
With the ability to expand the system up to a total of 245.76 kWh, it offers a versatile and scalable energy storage solution.

In addition, its design not only meets the needs of solar home systems, but also allows for higher continuous power and efficient peaks when several modules are combined.

Advanced technology and security

The Pytes Pi LV1 battery uses LFP (LiFePO₄) cells, known for their thermal stability, lower risk of overheating and superior durability over other lithium chemistries.

It has a robust internal structure with built-in BMS (field tested on the individual module). It protects against overloads, overcurrents and cell unbalance, providing reliable and safe operation.

In addition, a switch and fuses are integrated, simplifying system protection and maintenance.

The Pi LV1 is UL9540A certified on a large scale. This ensures a higher level of safety and security. It also streamlines the permitting process with local competent authorities (AHJ) for faster and easier approvals.

Scalability and configuration

The Pi LV1 battery can be expanded with additional modules in parallel, achieving configurations of up to 30.72 kWh per tower or system.

By increasing the number of units, the maximum discharge capacity and usable power of the complete system also increases. Thus, it adapts to higher loads

Duration and efficiency

This battery features a cycle life of ≥6000 cycles at 90 % depth of discharge (DOD), Ret at 70 %, 25 ℃, which translates into many years of daily operation with very little degradation.

Its cycle efficiency is superior to the 95%, which means that almost all of the incoming energy can be recovered when discharging.

The Pi LV1 operates in moderately cold to hot environments, with typical specifications extended by the thermal design of the battery.

In addition, it comes with a 10-year warranty with manufacturer's support.

Suitable for outdoor use

The Pytes Pi LV1 battery is equipped with an IP55 protection level. It offers waterproof and dustproof features suitable for both indoor and outdoor use. It is suitable for various application scenarios.

Smart monitor

Pytes' specialised smart monitor enables real-time operation monitoring. It facilitates seamless remote upgrades, minimising post-sale problems.

Installation

The Pi LV1 battery is easy to install because it features a quick connector and has a Plug and Play design. This streamlines the installation process by eliminating the need for manual wiring.

Its compact size and light weight allow the installation to be completed in just 15 minutes.

Connectivity

The Pytes Pi LV1 features CAN and RS485 communication protocols. This facilitates integration with intelligent energy management systems. It also allows the battery to transmit state of charge, temperature and alarm data to the inverter or monitoring platform.

Compatibility with the Pytes Pi LV1 lithium battery

The Pi LV1 battery is compatible with a wide range of inverters, including Victron Energy, GROWATT, solis, APsystems, EG4, phocos, Deye, ALTENERGY POWER, Solar, hoymiles, Solarplanet, SRNE, Sol-Ark, LUX POWERTEK, MEGAREVO, STUDER and Voltronic Power.
