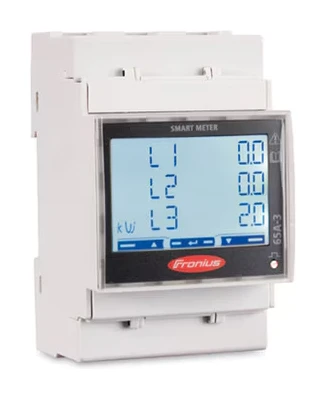

Fronius Smart Meter TS 65A-3 - 42,0411,0345

The Fronius Smart Meter TS 65A-3 is a three-phase, bidirectional meter with direct measurement, designed to accurately measure the energy consumed, generated and fed into the grid. It is the key component for turning any Fronius installation into a truly smart system: it allows you to optimise self-consumption, monitor loads and apply dynamic power limitation in real time via Modbus RTU (RS485).

Features of the Fronius Smart Meter TS 65A-3 – 42,0411,0345

• Real-time bidirectional measurement: controls energy import and export with complete transparency.
• Optimised self-consumption: the inverter adjusts production/battery according to actual consumption.
• Dynamic zero discharge: faster and more precise regulation than S0 systems thanks to Modbus RTU.
• Detailed load curves: ideal for detecting consumption peaks and sizing batteries or loads.
• Visualisation in Fronius Solar.web: comprehensive monitoring via the Fronius Solar.web app.

Technical specifications

Electricity companies

• System: Three-phase
• Rated voltage: 208–400 V
• Nominal frequency: 50–60 Hz
• Network frequency range: 45–65 Hz
• Maximum current: 3 × 65 A
• Own consumption: ≤ 1 W
• Starting intensity: 20 mA

Accuracy

• Active energy: Class 1 (EN 62053-21) / Class B (EN 50470-3)
• Reactive energy: Class 2 (EN 62053-23)

Wiring

• Power cable section: 1 – 16 mm²
• Neutral section / communication: 0.05 – 1.5 mm²

Communication

• Interface: Modbus RTU (RS485)

Mechanical and environmental

• Assembly: Interior, DIN rail
• Housing: 3 DIN 43880 modules
• Degree of protection: IP51 front / IP20 terminals
• Operating temperature: −25 to +65 °C
• Dimensions (H × W × D): 91.5 × 53.8 × 63.0 mm
