Pytes Battery BMU Module (Battery) 5,12kW HV48100 High Voltage Battery pack

Pytes Battery BMU Module (Battery) 5,12kW HV48100 High Voltage Battery pack

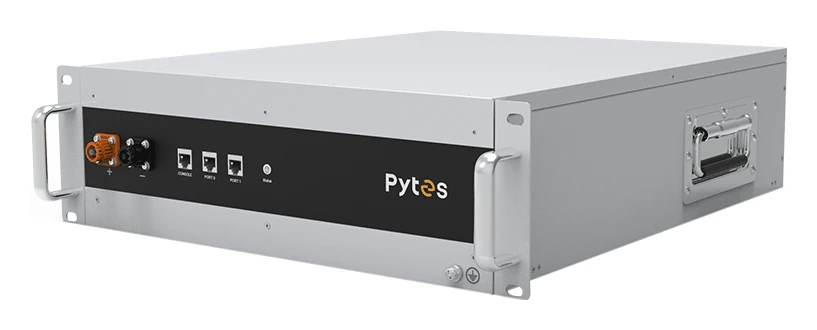

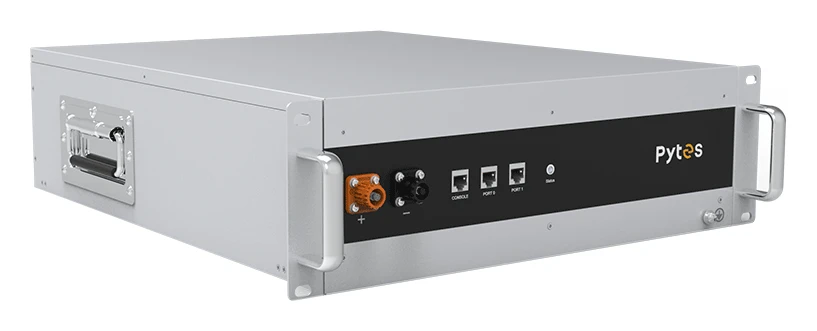

The Pytes HV48100 BMU (Battery) is a high voltage energy storage module designed to meet the most demanding energy needs in photovoltaic systems and backup power systems. It is also ideal for hybrid installations, commercial and industrial applications and self-consumption power systems.

With a capacity of 5.12 kWh per battery module and a voltage of 51.2 V, this BMU combines high safety, long service life, energy efficiency, modularity and scalability. It also offers high performance in every charge and discharge cycle.

It is therefore positioned as a versatile, robust and professional battery module, capable of integrating into multiple configurations and meeting demanding energy needs in intelligently controlled systems.

Main features of the BMU Module (Battery) HV48100

Advanced high-voltage technology

The BMU HV48100 uses grade A lithium iron phosphate (LiFePO₄) cells, known for their high thermal stability, low risk of ignition and high resistance to continuous loads.

This battery module is designed to work in high voltage systems. This allows for higher energy conversion efficiency and a significant reduction in energy losses. It also achieves a lower current intensity for the same power, and better compatibility with high voltage hybrid inverters.

Thanks to this configuration, the HV48100 BMU can achieve a more stable and efficient performance compared to low-voltage solutions.

Integrated BMS

The BMU incorporates an intelligent battery management system (BMS), which monitors and controls parameters such as voltage, current, temperature and cell status in real time.
The BMS also protects against overloads, over-discharges, short circuits and adverse thermal conditions.
It also automatically balances the battery cells and optimises battery life.

It also has CAN and RS485 communications protocols, compatible with most inverters and controllers on the market.

Therefore, this integrated BMS improves the operational safety of the battery module and the overall efficiency of the system. In addition, it ensures safe operation even under demanding conditions.

Exceptional service life

The HV48100 BMU is a battery module designed to withstand more than 6,000 charge/discharge cycles (under normal use) and has an efficiency of 95%.
In addition, it maintains a high useful capacity even after long periods of constant operation.

This feature makes it perfect for installations in homes with daily use. It is also ideal for commercial or industrial installations where the battery works with constant loads and variable demands.

Scalability

The design of the BMU allows for modular systems to be configured and several modules can be connected in series to increase the total capacity of the system.

Each battery module has a capacity of 5.12 kWh, so you can start by installing a single battery module. It is then possible to expand the system to a maximum of 8 modules in series. This makes it possible to configure systems of up to 40.96 kWh.

This feature makes the Pytes HV48100 battery ideal for both small residential installations and larger scale commercial projects.

Compact design

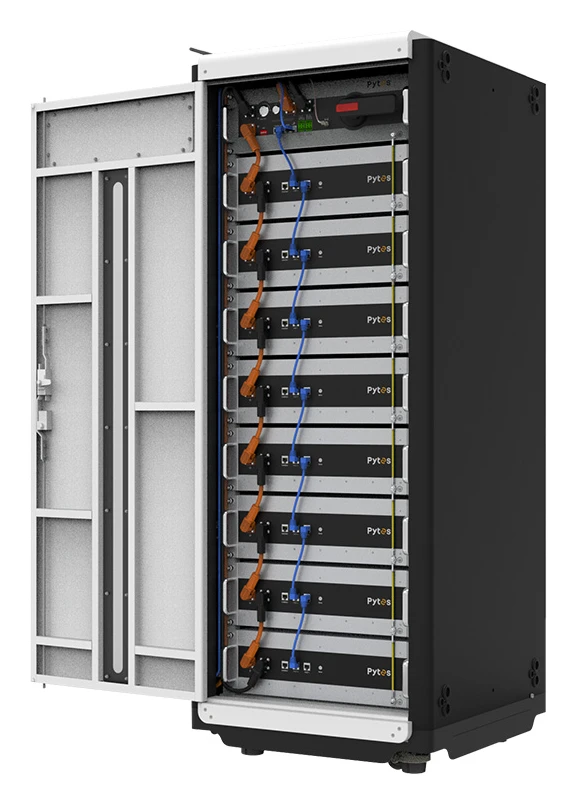

This BMU is designed to be installed in its own enclosure, the Pytes 19″ Rack Cabinet. This enclosure has a 19-inch rack format, which makes it easy to integrate neatly.

In addition, its compact design optimises the available space and simplifies maintenance.

Main advantages of the Pytes Battery Module BMU (Battery) 5,12kW HV48100 High Voltage Battery pack

The main advantages of this BMU are the following:

• Nominal capacity per battery module of 5.12 kWh.
• Scalability up to 8 modules connected in series, increasing capacity to 40.96 kWh.
• High-voltage technology.
• Integrated BMS system.
• Maximum security.
• Modular design.
• High efficiency and operational stability.
• Protection advances from the cells.
• Long service life.

Compatibility of BMU Module (Battery) HV48100

The HV48100 battery is designed to communicate with inverters via CAN and RS485 protocols and is compatible with a wide range of hybrid and high voltage inverters when properly configured.

This BMU is compatible with brands such as Victron, Sol-Ark, Solis, Sinexcel, Deye, Megarevo, Ingteam, and Afore.

Technical information about Pytes Battery Module BMU (Battery) 5,12kW HV48100 High Voltage Battery pack

BMU Module (Battery) HV48100 Datasheet

BMU (Battery) Module Manual HV48100
